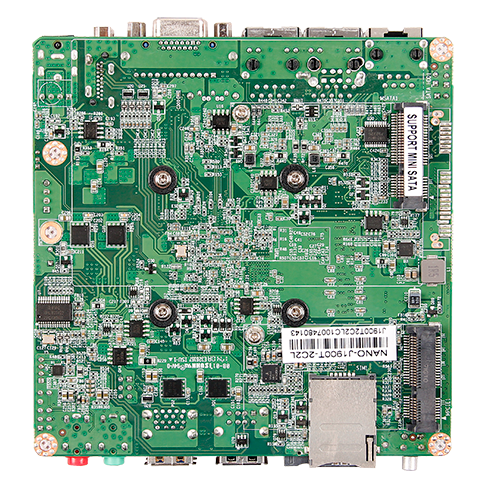

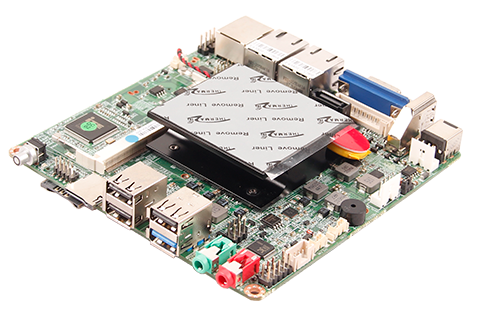

NANO-J1900T-2C2L
Detailed
Support for Intel ® Bayrail J1900/1800 processor
Supports 1 * SO-DIMM, DDR3L-1333, Max.8GB
Supports display output VGA, HDMI, and dual display synchronous/asynchronous
On board 2 * Realtek RTL8111E Gigabit Ethernet card
Supports 1 * SATA and 1 * Mini SATA
Supports 1 * USB3.0+3 * USB2.0
Supports 1 * Mini PCIE (For WiFi/4G extension)
Support 1 * TF extended storage card interface; SIM plug-in installation
Supports 2 * COM232
Support DC 12V power supply
0755-83650405

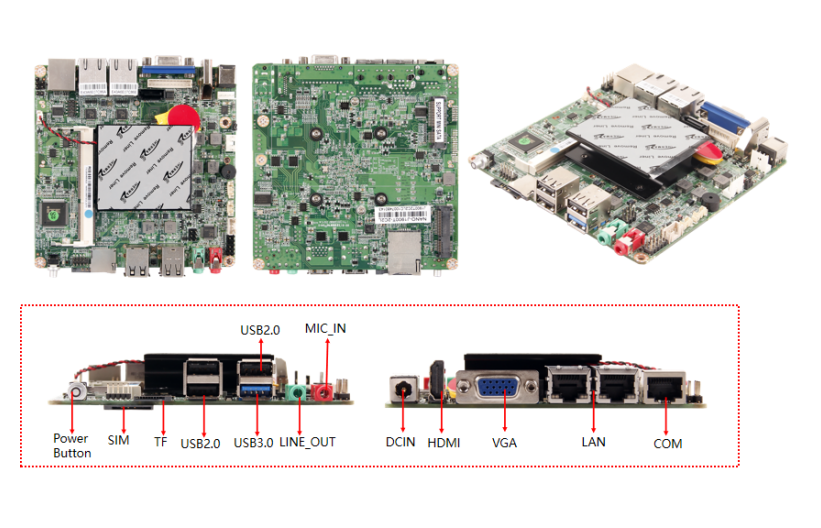

| CPU | Support for Intel ® Bayrail processor, J1900/1800 | Post I/O interface | 1 * USB3.0 port |
| Chipset | Intel®SOC | 3 * USB2.0 port | |
| Display chip | Intel ® HD Graphics integrated graphics card | 1 * VGA port | |
| Display output | VGA、HDMI | 1 * HDMI port | |
| Multi display support | VGA+HDMI (synchronous/asynchronous dual display) | 2 * LAN port | |
| USB | 1*USB3.0 3*USB2.0 | 1 * MIC_ IN port | |
| Memory | 1*SO-DIMM，DDR3L 1333MHZ Max 8GB | 1 * LINE OUT port | |
| sound effects | On board Realtek ALC662HD audio decoding controller | 1 * COM_ RJ45 port | |
| 1 * DC port | |||
| Network card | On board 2 * Realtek RTL8111E Gigabit Ethernet card | 1 * PWR SW button | |
| Internal I/O | 1 * VGA pin | ||
| storage | 1*SATA，1*TF | 1 * COM pin | |
| 1*Mini-SATA(For mSATA) | 1 * F_ PANEL pin | ||
| expansion slot | 1*Mini-PCIE(For 4G/ WIFI ) 1*SIM | 1 * F_ AUDIO pin | |
| I/O chip | 2*COM232 | 1 * J1 pin | |
| BIOS | AMI BIOS | 1 * GPIO pin | |
| power supply | DC 12V power supply | 1 * SYS-FAN pin | |
| Cooling System | Equipped with CPU heat sink | 1 * CPU-FAN pin | |
| 1 * CIR pin | |||
| Environment | Working temperature: 0-60 ℃; Storage: -20~75 ℃ | 1 * DEBUG pin | |
| 0%~95% relative humidity, non condensing | 1 * SPEAKER pin | ||
| Size | 120 X 120mm | 1 * SATA-PWR pin |
