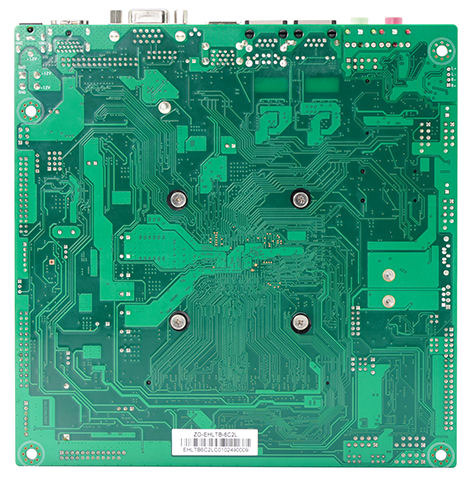

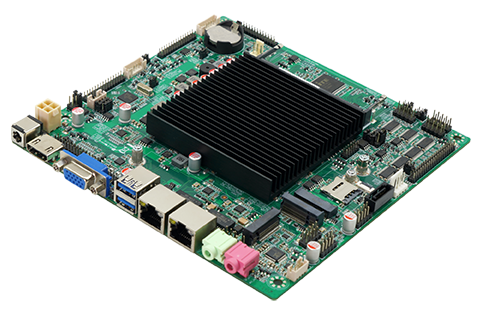

ZO-EHLTB-6C2L
Detailed
Supports Intel's first IOTG custom Elkhart Lake J6412/J6413 processor
Supports single channel SO-DIMM DDR4 3200MHz Max16GB
Supports LVDS/EDP1+HDMI/EDP2+VGA, three display synchronous
Supports 2 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional single network)
Supports 2 * USB3.2 Gen2 (10Gbps); 6 * USB2.0
Supports 6 * COM232, with COM2 supporting RS232/485/422; COM3 supports RS232/485
1 * M.2 Key M, supporting SATA/PCIEX2 signal adaptation
1 * M.2 Key E, supporting WiFi+Bluetooth extension; 1 * M.2 Key B, supporting 4G/5G module expansion; 1 * SIM
DC 12V power supply

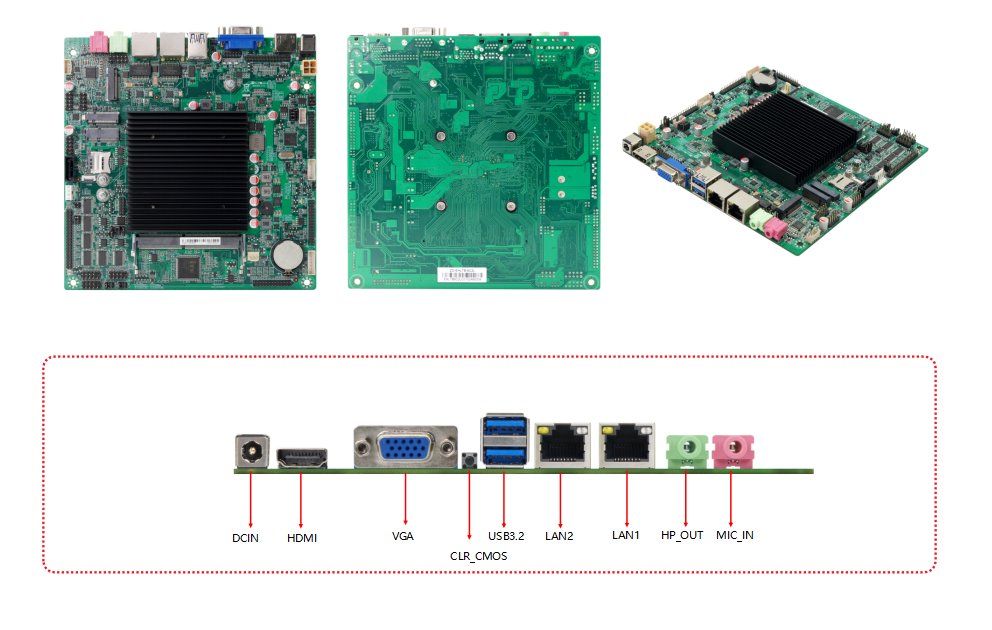

0755-83650405 | CPU | Intel® Elkhart Lake J6412/J6413 processor | Post I/O interface | 1 * DCIN port 1 * HDMI port 1 * VGA port 1 * USB3.2 Gen2 port 1 * USB2.0 port (optional with 1 * LAN) 1 * LAN port 1 * HP_ OUT interface 1 * MICIN interface |
| Chipset | Intel® SOC | ||
| Display chip | Intel® UHD Graphics | ||
| Display output | LVDS+HDMI+VGA LVDS+EDP2+VGA EDP1+HDMI+VGA EDP1+EDP2+VGA | ||
| Multi display support | Supports three display synchronous/asynchronous output | ||
| USB | 6*USB2.0+2*USB3.2 Gen2（10Gbps） | ||
| Memory | 1*SO-DIMM DDR4 3200MHz Max16GB | ||
| sound effects | On board ALC897 audio decoding controller | ||
| Independent power amplifier NS4251 3W@4 Ω; 1.7W@8 Ω | Internal I/O | 1 * EDP2 pin (this pin has no function by default, and bios firmware and hardware updates are required if needed) 1 * JVGA pin 1 * F_ AUDIO pin 1 * SPEAKER pin 3 * F_ USB2.0 pin (expandable 6 * USB2.0 port) 1 * SATA socket 1 * SATA_ PWR pin 1 * GPIO pin 6 * COMRS232 pin (COM2 and COM3 support 2-way RS485 optional, COM1/2/3 support live optional RI/5V/12V) 1 * F_ PANEL pin 1 * PRINT pin 1 * PS2 pin 1 * INCN pin 1 * LVDS pin/EDP 1 pin (function two options -) 1 * LCTL pin 1 * 4PIN ATX socket |
|
| Network card | On board 2 * Realtek 8111H/8111G Gigabit Ethernet card (optional single network) | ||
| storage | 1 * SATA3.0 interface | ||
| expansion slot | 1 * M.2 Key B, supporting 4G/5G expansion modules | ||
| 1 * M.2 Key E, supporting WiFi+Bluetooth extension | |||
| I/O chip | ITE8786E-I | ||
| BIOS | AMI BIOS | ||
| power supply | DC/4PIN ATX 12V power supply | ||
| Cooling System | Equipped with fanless CPU heat sink | ||
| Environment | Working temperature: 0-50 ℃; Storage: -20 ℃~75 ℃ | ||
| 0%~95% relative humidity, non condensing | |||
| Size | 170X170mm |
