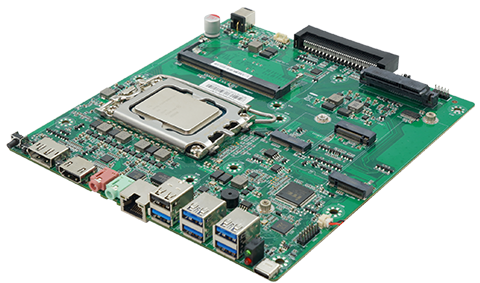

OPS-RPLPST-CR1
Detailed
The product meets the standard OPS-C design specifications
Support for Intel ® Alder Lake&Raptor Lake Processor
Supports HDMI2.1 and DP1.4 display output
Supports HDMI2.1 with maximum support 4K@60FPS IO/OPS end
Supports DP1.4 with maximum support 8K@60FPS IO/OPS end
Supports dual channel DDR4 3200Hz 64G memory, better supporting 4K video encoding and decoding
Supports M.2 M Key interface and supports PCIEX4/SATA signal adaptation
Supports M.2 E Key interface, expandable WiFi 6+Bluetooth
Supports 5 * USB3.2 GEN2 (10Gbps)+1 * USB2.0 (when Type-C is loaded, the DUSB1 interface is USB3.0)
Supports EUP (ErP) energy-saving standard, with standby power consumption below 0.5W
USB supports short circuit protection, enhances drive capability, and is compatible with various devices
Built in turbine intelligent radiator for excellent heat dissipation performance

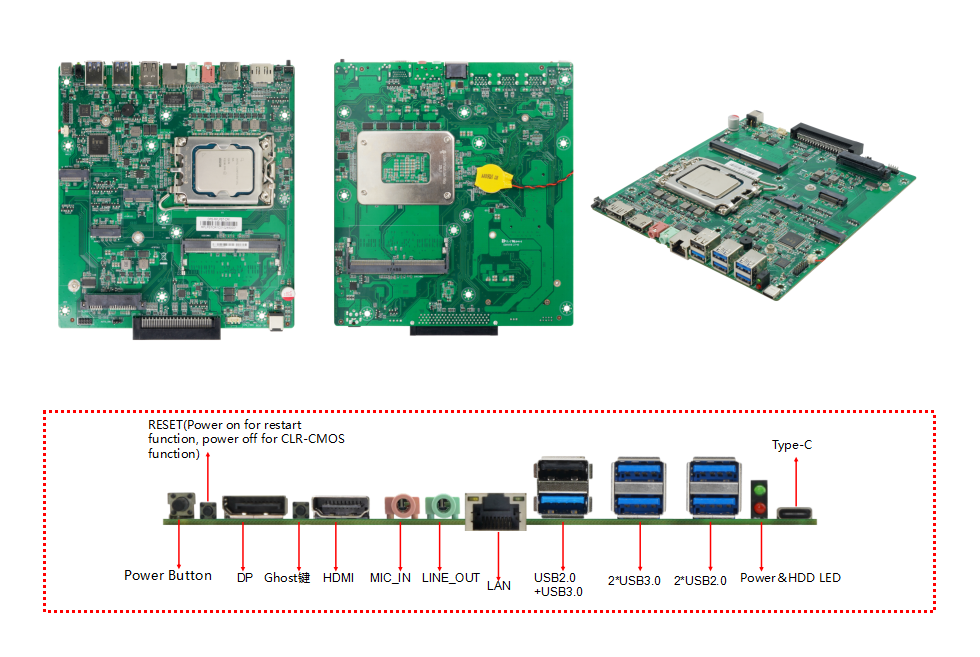

0755-83650405 | CPU | Support Intel®12/13th CoRE ™ i7/i5/i3 Alder Lake &Raptor Lake Processor | I/O terminal display | 1 * Power Button 1 * RESET 1 * DP port 1 * Ghost key (reserved function) 1 * HDMI port 1 * MIC-IN port 1 * LINE OUT port 1 * LAN port 1 * USB2. O+USB3.0 port 2 * USB3.2 Gen2 port 2 * USB3.2 Gen2 port 1 * Power&HDD LED 1 * Type-C port (distinguished by model) 1 * OPS-C port 1 * DC port |
| Chipset | Intel®SOC | ||
| BIOS | Intel ® IRIS® Xe graphics card | ||
| Display output | 2*DP1.4、2*HDMI2.1 | ||
| Multi display support | Four identical (different) steps | ||
| USB | 5 x USB3.2 GEN2 1xUSB2.0 | ||
| Memory | 2xSO-DIMM，DDR4 2666/2933/3200MHz Max64GB | ||
| sound effects | On board Realtek ALC897HD audio decoding controller | ||
| network card | 1 * Realtek RTL8111H Gigabit Network Card | ||
| Storage | 1 x M.2 M Key, supporting 2242/2280mm PCIEX4/SATA signal adaptation; 1 * SATA Port | ||
| expansion slot | 1 x M.2 E Key (supports WIFI6+Bluetooth module expansion) | ||
| I/O Chip | IT8784E | ||
| BIOS | AMI BIOS | ||
| Power | DC 12~19V Wide voltage power supply | ||
| Mainboard size | 190X172MM | ||
| COOLING SYSTEM | Equipped with CPU fan and heat sink | I/O interface | 1 * TPM pin 1 * COM pin 1 * CPU_ FAN pin |
| operation temperature | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃; | ||
| 0%~95% relative humidity, non condensing |
