HPC-1211
Detailed
Support for Intel ® Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation Whiskeylake&10th generation Cometlake U processors
Supports SO-DIMM, M-SATA, M.2 Sata, M.2 NVME storage

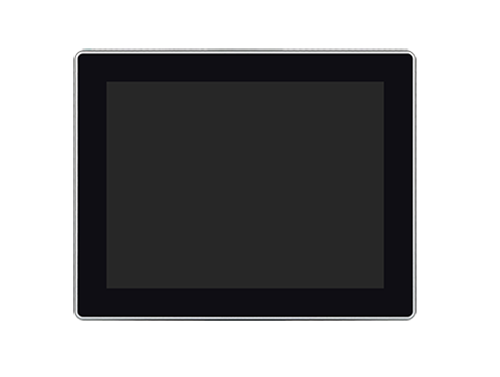

Standard 12.1-inch high-definition display screen, resistive touch screen, supporting dual display
Standard dual network ports, some configurations support Intel encryption TPM2.0, and support 8 * GPIO
Supports 1 * Mini PCIE (for WIFI), 1 * SIM, and supports 3G, 4G, and 5G modules

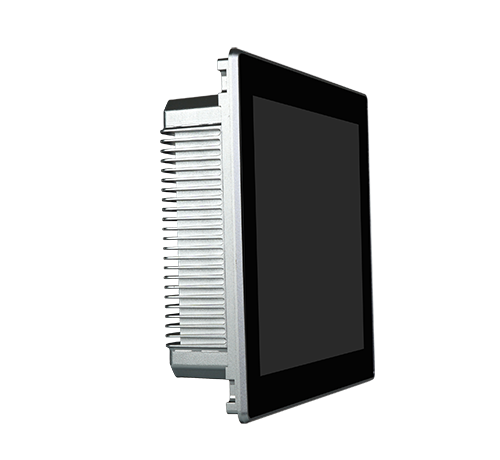

Supports VESA bracket installation, wall mounted and desktop mounted
Panel protection level: IP65 waterproof and dustproof
ESD Protection: ±6kV (Contact ), ± 12kV (Air)
The product can be widely used in industries such as industrial automation, environmental monitoring, wind power generation, 3D machine vision inspection, etc

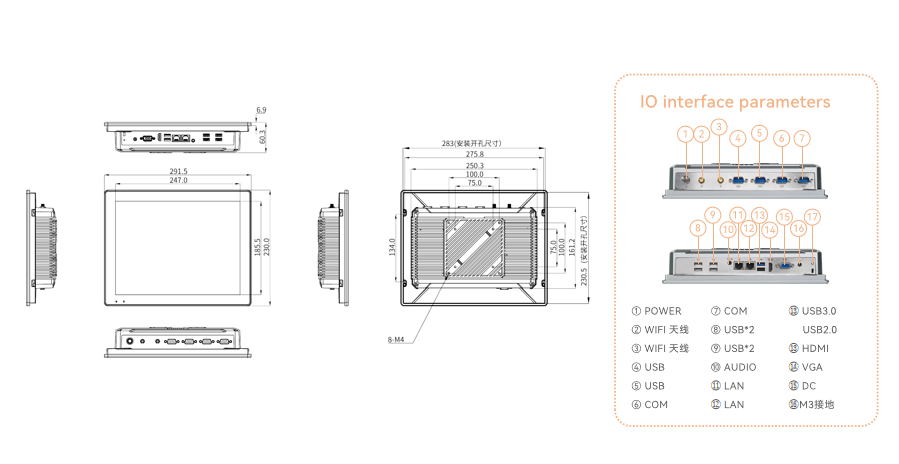

0755-83650405 | Product Model | HPC-1211 | Pilot lamp | Reserved power status indicator light under the screen | Dimensions | 292x230x60mm |
| Display | 12.1 | Trumpet | 2 x 4 ? 3W | Weight | < 3.0kg |

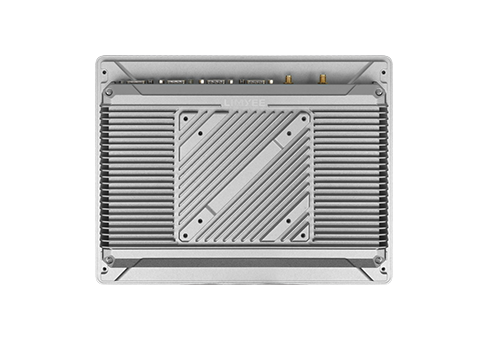

| Touch Screen | Resistive Touch Screen | Heat dissipation | Fanless | Product colour | Space Gray |
| Resolution Ratio | 1024*768 | Overall Power Consumption | <18W (screen 4W) | Chassis material | Aluminum alloy structure |
| Luminance | 300cd/㎡ | Installation Method | Compatible with embedded, wall mounted, and desktop versions |
| CPU | Elkhart Lake | Sky Lake (Generation 6-7) | Gemini Lake |
| BIOS | AMI BIOS | AMI BIOS | AMI BIOS |
| Chipset | Intel® SOC | Intel® SOC | Intel® SOC |
| Display | Intel ® Graphics nuclear display | Intel ® HD Graphics nuclear display | Intel ® HD Graphics nuclear display |
| Network | 2 * Intel I226-V Gigabit Network Card | 2 * Intel I211 Gigabit Network Card | Intel I219 Gigabit Network Card+I211 Gigabit Network Card |
| Audio | Realtek ALC269HD | Realtek ALC662HD | Realtek ALC662HD |
| Memory | DDR4 3200MHz Max 16G | DDR4 2133 MHz Max 16G | DDR4 2400MHz Max 16G |
| Hard dive | M.2 2280 NVME128GB | M-SATA 128G | M.2 2280 NVME128GB |
| Functions | Support WiFi, Bluetooth, 4G, watchdog, diskless startup, wake-on-LAN, power on startup | Support WiFi, Bluetooth, 4G, watchdog, diskless startup, wake-on-LAN, power on startup | Support WiFi, Bluetooth, 4G, watchdog, diskless startup, wake-on-LAN, power on startup |

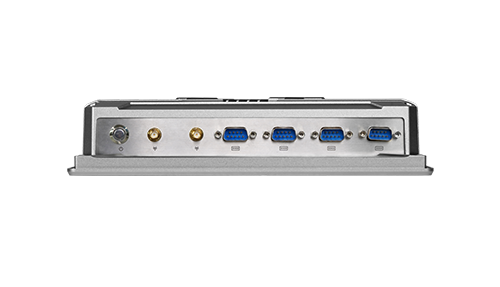

| Front I/O | 1 * Switch 2 * Antenna 4 * COM | 1 * Switch; 2 * Antenna; 2*COM | 1 * Switch; 2 * Antenna; 2*COM |

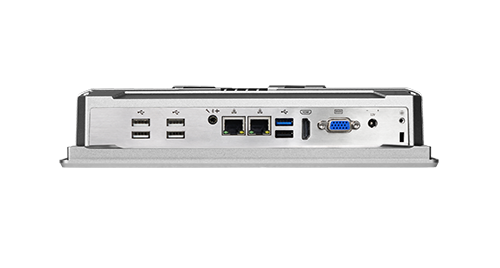

| Rear I/O | 1 * Audio interface | 1 * Audio interface | 1 * Audio interface |
| 1 * DP interface | 2 * LAN interface | 1 * DP interface | |
| 1 * HDMI interface | 2 * USB3.0 interface | 1 * HDMI interface | |
| 1 * USB2.0 interface | 1 * HDMI interface | 4 * USB3.2 interface | |
| 3 * USB3.1 interface | 1 * VGA interface | 2 * LAN interface | |
| 2 * LAN interface | 1 * DC IN interface | 1 * DC IN interface | |
| 1 * DC IN interface | 4 * USB interface | 4 * USB interface | |
| 4 * USB interface | 1 * M3 grounding screw hole | 1 * M3 grounding screw hole | |
| 1 * M3 grounding screw hole | 1 * CMOS button | ||
| 1 * CMOS button | Supports 8 * GPIO | ||
| Supports 8 * GPIO | |||
| Power IN | DC 12V~24V wide voltage | DC 12V~24V wide voltage | DC 12V~24V wide voltage |
| OS support | Windows 7 / Windows 10 / Linux | Windows 7 / Windows 10 / Linux | Windows 7 / Windows 10 / Linux |
| Power Adapter | INPUT : 100-240V 50/60Hz Output : 12.0V/5.0A |
INPUT : 100-240V 50/60Hz Output : 12.0V/5.0A |
INPUT : 100-240V 50/60Hz Output : 12.0V/5.0A |
| certification | CCC / CE / FCC / RoHs | CCC / CE / FCC/ RoHs | CCC / CE / FCC / RoHs |
| National standard | Parameter Description | |
| EMC | GB/T 9254.1-2021 Radio disturbance limits and measurement methods for information technology equipment |
Radiation disturbance (B) level Conducted disturbance (B) level |
| GB/T 17618-2015 Information technology equipment immunity limits and measurement methods | Meet the requirements of 6KV contact discharge and 12KV air discharge | |
| Safety | GB 4943.1-2011 Information technology equipment security - Part 1: General requirements |
Grounding resistance: ≤ 0.1 Ω Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC Insulation resistance: ≥ 100M Ω Leakage current: ground leakage current ≤ 3.5mA |
| Environment | GB/T 9813.4-2017 General specification for computers - Part 4: Industrial application microcomputers GB/T 2423 Environmental Test |
Working temperature: -10 ℃~60 ℃ Damp heat: 40 ℃ 95% RH |
|
Product Type |
Specifications Description |
Remarks |
|
HPC-1211 |
12.1 inch LCD screen/resistive touch screen/J1900/DDR3L 1333MHz 4GB/M-SATA 128GB |
|
|
HPC-1211 |
12.1 inch LCD screen/resistive touch screen/J4125/DDR4 2133/2400MHz 4GB/M2 2280 Sata 128GB |
|
|
HPC-1211 |
12.1 inch LCD screen/resistive touch screen/J6412/DDR4 3200MHz 4GB/M2 2280 NVME128GB |
|
|
HPC-1211 |
12.1 inch LCD screen/resistive touch screen/6200U/DDR4 2133MHz 8GB/M-SATA 128G |
|
|
HPC-1211 |
12.1 inch LCD screen/resistive touch screen/8145U/DDR4 2666MHz 8GB/M2 2280 NVME 128GB |
|
