PPC-1011
Detailed
Support for Baytrail processors J1900/J1800/N2807
Supports DDR3L standard configuration of 4GB and M-SATA standard configuration of 128G
Standard 10.1-inch high-definition display screen, capacitive touch screen, supporting three displays
Standard configuration: 4USB, 1LAN interface, 2COM, expandable GPIO
Supports 1 * MINI-PCIE (for WIFI), 1 * SIM
Supports VESA bracket installation, wall mounted and desktop mounted
The complete machine has a windless design, patented industrial design, and is aesthetically pleasing
The product can be widely used in industries such as MES, store displays, and self-service terminals
Panel protection level: IP65 waterproof and dustproof
ESD Protection: ±6kV (Contact ), ± 12kV (Air)
The product can be widely used in industries such as MES, store displays, self-service terminals, etc

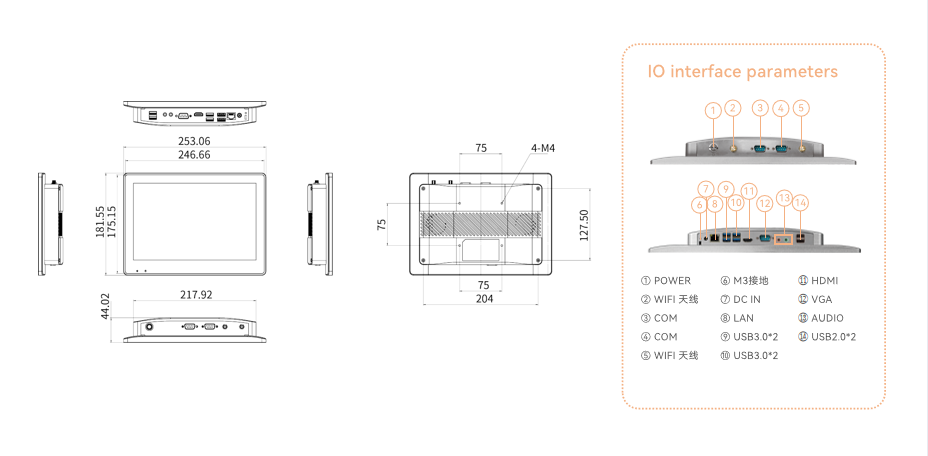

0755-83650405 | Product Model | Industrial Panel PC PPC-1011 | Pilot lamp | Reserved power status indicator light under the screen | Dimensions | 253x182x44mm |
| Display | 10.1 | Trumpet | 2 x 4 ? 3W | Weight | < 1.8kg |
| Touch Screen | Capacitive Touch Screen | Heat dissipation | Fanless | Product colour | Space Gray |
| Resolution Ratio | 1280*800 | Overall Power Consumption | <17W (screen 3.5W) | Chassis material | Aluminum alloy structure |
| Luminance | 300cd/㎡ | Installation Method | Compatible with embedded, wall mounted, and desktop versions |
| CPU | Bay Trail | Gemini Lake |
| BIOS | AMI BIOS | AMI BIOS |
| Chipset | Intel® SOC | Intel® SOC |
| Display | Intel ® HD Graphics nuclear display | Intel® UHD Graphics 600 |
| Network | Realtek RLT 8111H/8111G Gigabit Network Card | Realtek RLT 8111H/8111G Gigabit Network Card |
| Audio | ALC897 HD Audio Decoding Controller | ALC897 Audio Decoding Controller |
| Memory | DDR3L 1333MHz Max 8G | DDR4 2933MHz Max32GB |
| Hard dive | 1*Sata，1*Mini-Sata | 1*Mini-Sata |
| Functions | Support 1 * Mini PCIE (support Wifi/4G module), power on auto start, watchdog, wake-on-LAN | 1 * mPCIE, supporting WIFI/Bluetooth module expansion |
| Front I/O | 1 * Switch; 2 * Antenna; 2*COM | 1 * Switch; 2 * Antenna ; 2*COM |
| Rear I/O | 1 * DC IN port 1 * LAN port 4 * USB3.0 port 1 * SIM card slot 1 * VGA port 1 * LINE OUT port 1 * MIC-IN port 2*USB2.0 1 * M3 grounding screw hole |
1 * DC IN port 1 * LAN port 4 * USB3.0 port 1 * HDMI port 1*COM 1 * LINE OUT port 1 * MIC-IN port 2*USB2.0 1 * M3 grounding screw hole |
| Power IN | DC 12V input | DC 12V input |
| OS support | Windows 7 / Windows 10 / Linux | Windows 7 / Windows 10 / Linux |
| Power consumption | ≤60W | |
| Power Adapter | INPUT : 100-240V 50/60Hz ; Output : 12.0V/5.0A | INPUT : 100-240V 50/60Hz ; Output : 12.0V/5.0A |
| certification | CCC / CE /FCC/ RoHs | CCC / CE /FCC/ RoHs |
| National standard | Parameter Description | |
| EMC | GB/T 9254.1-2021 Radio disturbance limits and measurement methods for information technology equipment |
Radiation disturbance (B) level Conducted disturbance (B) level |
| GB/T 17618-2015 Information technology equipment immunity limits and measurement methods | Meet the requirements of 6KV contact discharge and 12KV air discharge | |
| Safety | GB 4943.1-2011 Information technology equipment security - Part 1: General requirements |
Grounding resistance: ≤ 0.1 Ω Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC Insulation resistance: ≥ 100M Ω Leakage current: ground leakage current ≤ 3.5mA |
| Environment | GB/T 9813.4-2017 General specification for computers - Part 4: Industrial application microcomputers GB/T 2423 Environmental Test |
Working temperature: 0 ℃~50 ℃ Damp heat: 40 ℃ 95% RH |
|
Product Type |
Specifications Description |
Remarks |
|
PPC-1011 |
10.1-inch LCD screen/capacitive touch screen /J1900/DDR3L 1333MHz 4GB/M-SATA 128GB |
|
|
PPC-1011 |
10.1-inch LCD screen/capacitive touch screen/J4125 /DDR4 2133/2400MHz 4GB/M.2 2280 Sata 128GB |
|
