PPC-1021
Detailed
Supporting the high-performance and low-power quad core application processor of Rockchip RK3566/RK3568/RK3399
Standard 2G (optional 4G) LPDDR4X/LDPDR4, built-in 16G eMMC (optional 32G/64G/128G)
Standard 10.1-inch high-definition display screen, capacitive touch screen, supporting dual display
Supports multiple playback modes such as loop, timing, and insert playback
Supports 100 Gigabit Ethernet, supports WiFi/BT4.1, and wireless peripheral expansion
Supports VESA bracket installation, wall mounted and desktop mounted
The complete machine has a windless design, patented industrial design, and is aesthetically pleasing
The product can be widely used in industries such as MES, store displays, and self-service terminals etc
Panel protection level: IP65 waterproof and dustproof
ESD Protection: ±6kV (Contact ), ± 12kV (Air)
0755-83650405 | Product Model | PPC-1021 | Pilot lamp | Reserved power status indicator light under the screen | Dimensions | 379x238x43mm |
| Display | 10.1 | Trumpet | 2 x 4 ? 3W | Weight | < 1.8kg |
| Touch Screen | Capacitive Touch Screen | Heat dissipation | Fanless | Product colour | Space Gray |
| Resolution Ratio | 1280*800 | Overall Power Consumption | <7W (screen 3.5W) | Chassis material | Aluminum alloy structure |
| Luminance | 300cd/㎡ | Installation Method | Compatible with embedded, wall mounted, and desktop versions | ||
| CPU | Rockchip RK3566UP to2.0GHz | Rockchip RK3568UP to 2GHz |
| GPU | Mali-G52-2EE high-performance GPU | Mali-G52-2EE high-performance GPU |
| NPU | NPU supports 0.8T | NPU supports 0.8T |
| Memory | Standard 2G LPDDR4X/LPDDR4 | Standard 2G LPDDR4X/LPDDR4 |
| Built-in memory | EMMC16G/32G (optional) label 16G | EMMC16G/32G (optional) label 16G |
| Decoding resolution | Supports 1080P/H.265 (4K2K) | Supports 1080P/H.265 (4K2K) |
| Playback mode | Supports multiple playback modes such as loop, timing, and insert playback | Supports multiple playback modes such as loop, timing, and insert playback |
| network support | 10/100M Ethernet, supporting WiFi/BT4.1, wireless peripheral expansion | 10/100M Ethernet, supporting WiFi/BT4.1, wireless peripheral expansion |
| Function | Support RTC real-time clock, hardware watchdog, and timed on-off; Support TF card/computer updates; TF/USB automatic import of screen parameters | Support RTC real-time clock, hardware watchdog, and timed on-off; Support TF card/computer updates; TF/USB automatic import of screen parameters |

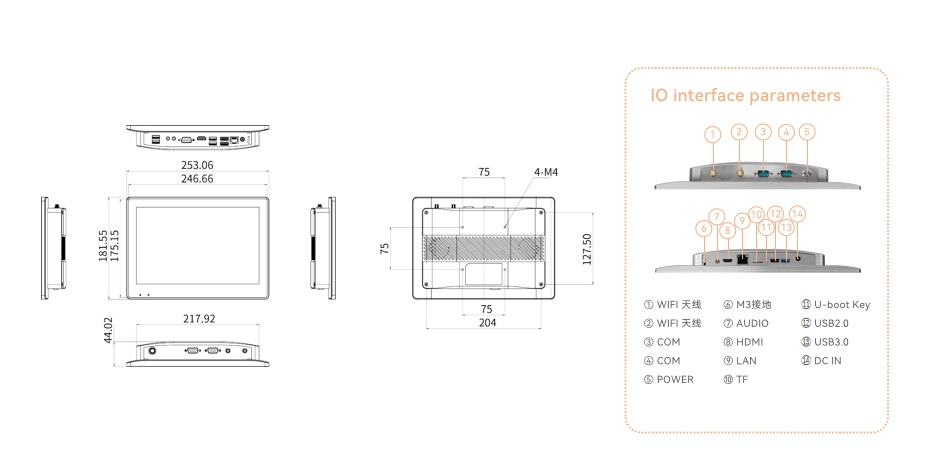

| Upper I/O interface | 2 * Antenna；1 * Switch；2 * USB2.0/COM port (reserved) | 2 * Antenna；1 * Switch；2 * USB2.0/COM port (reserved) |
| Lower I/O interface | 1 * AUDIO port | 1 * AUDIO port |
| 1 * HDMI port | 1 * HDMI port | |
| 1 * LAN port | 1 * LAN port | |
| 1 * TF card slot | 1 * TF card slot | |
| 1*U-boot Key | 1*U-boot Key | |
| 1 * USB3.0 port | 1 * USB3.0 port | |
| 1 * USB2.0 port | 1 * USB2.0 port | |
| 1 * DC port | 1 * DC port | |
| 2 * COM port | 2 * COM port | |
| 1 * M3 grounding screw hole | 1 * M3 grounding screw hole | |
| Power IN | DC 12V DC power supply | DC 12V DC power supply |
| OS support | Android 11.0 | Android 11.0 |
| Power Adapter | INPUT : 100-240V50/60Hz Output : 12.0V/5.0A 60W (3.0A 36W) | INPUT : 100-240V50/60Hz Output : 12.0V/5.0A 60W (3.0A 36W) |
| Certification | CCC / CE / FCC / RoHs | CCC / CE / FCC/ RoHs |
| National standard | Parameter Description | |
| EMC | GB/T 9254.1-2021 Radio disturbance limits and measurement methods for information technology equipment |
Radiation disturbance (B) level Conducted disturbance (B) level |
| GB/T 17618-2015 Information technology equipment immunity limits and measurement methods |
Meet the requirements of 6KV contact discharge and 12KV air discharge | |
| Safety | GB 4943.1-2011 Information technology equipment security - Part 1: General requirements |
Grounding resistance: ≤ 0.1 Ω Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC Insulation resistance: ≥ 100M Ω Leakage current: ground leakage current ≤ 3.5mA |
| Environment | GB/T 9813.4-2017 General specification for computers - Part 4: Industrial application microcomputers GB/T 2423 Environmental Test |
Working temperature: 0 ℃~50 ℃ Damp heat: 40 ℃ 95% RH |
| Product Type | Specifications Description | Remarks |
| PPC-1011 | 10.1-inch LCD screen/capacitive touch screen /J1900/DDR3L 1333MHz 4GB/M-SATA 128GB | |
| PPC-1011 | 10.1-inch LCD screen/capacitive touch screen/J4125 /DDR4 2133/2400MHz 4GB/M.2 2280 Sata 128GB |
