Product model

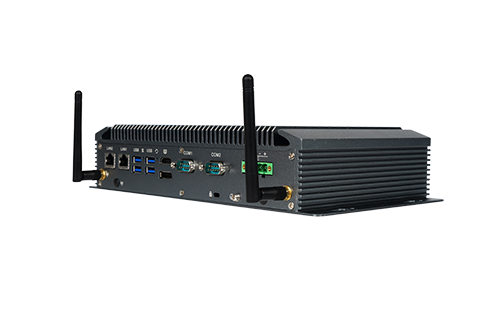

EPC-2311

Size (mm)

≤ 285x156x60mm

Indicator light

Power status indicator light, combined with power button, hard drive indicator light, WiFi indicator light

Weight (kg)

≤ 2.2kg

Heat dissipation method

Passive cooling design without fans

Color

Space Grey

Overall power consumption

< 15W

Shell material

Aluminum alloy

Installation method

Compatible with embedded, wall mounted, and desktop versions

CPU

Intel Whiskey Lake series  i3/ i5/ i7 Processors

CPU

Intel Whiskey Lake series i3/ i5/ i7 Processors

BIOS

AMI （256M）

Chipset

Intel® SOC

Pattern display

Intel® UHD Graphics

Network

Intel i226-AT + I219-LM

Sound effects

HS-100B

Memory

DDR4 2400MHz Max 32G

Hard disk

M. 2 2280 NVME128GB, Scalable SATA 3.0 2.5-inch HDD

Function

Supports WiFi, Bluetooth, 3G/4G/5G modules, supports diskless startup, network wake-up, and power on/off

Front I/O interface

1 * Power on button (LED)
2 * LED (HDD&WiFi)
1 * SW, 2 pin Phoenix terminal
1 * Mic_ In
1 * Line_ Out
2 * USB2.0 port
1 * SIM card slot
2 * RS232+8 GPIO ports or up to 16 GPIO ports
2 * Antenna

Rear I/O interface

2 * LAN port
4 * USB3.1 port
2 * HDMI port
2 * COM
1 * DC IN port, 4pin Phoenix terminal
1 * M3 grounding screw hole
4 * Antenna
1 * RST button, in case of shutdown, long press for ≥ 3 seconds to clear BIOS configuration; In the case of startup, briefly press 0.5~1s to restart
1 * REC key, System Restore

Power input

12-19V DC input (optional 9-36V wide voltage power module)

Expansion

Basic configuration, GPIO adapter extension, WiF module, 12-19V DC input
Four network port expansion, GPIO conversion expansion, 12-19V DC input
POE quad port expansion, GPIO adapter expansion, 12-19V DC input
Six serial port expansion, WiF module, 9-36V wide voltage power module
Fourteen USB expansion, 4G module, GPIO adapter expansion, 12-19V DC input

OS System

Support WIN 7 / WIN10 / Linux

Certificate

CCC / CE / RoHs/FCC

National standard

Parameter Description

EMC

GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment

Radiation disturbance (B) level
Conducted disturbance (B) level

GB/T 17618-2015
Information technology equipment immunity limits and measurement methods

Meet the requirements of 6KV contact discharge and 12KV air discharge

Safety regulations

GB 4943.1-2011
Information technology equipment security - Part 1: General requirements

Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC;
For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA

Environment

GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
environmental test

Working temperature: (-20) ℃~(60) ℃
Storage temperature: (-20) ℃~(70) ℃
Constant damp heat: (40) ℃ (95)% RH
Drop in packaging: The machine is packaged at a height of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration 1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse width of 11ms, and 3 times of impact in the working direction,
Noise: (0) dB

Model

Specification Description

Notes

EPC-2311

Intel 8365U/DDR4 2400MHz 8GB/M2 2280 SATA 128GB/WiFi module/daughter card ZIC-DB-PWRGP ZO010

EPC-2311-4L

Intel 8365U/DDR4 2400MHz 8GB/M2 2280 SATA 128GB/daughter card EIO-4L ZO020/daughter card ZIC-DB-PWRGP ZO010

EPC-2311-POE4L

Intel 8365U/DDR4 2400MHz 8GB/M2 2280 SATA 128GB/EIO-4LP ZO020/daughter card ZIC-DB-PWRGP ZO010

EPC-2311-6C

Intel 8365U/DDR4 2400MHz 8GB/M.2 2280 SATA 128GB/Module/WiFi module//EIO-4L4LP4UGP ZO010/ZIC-DB-PWR2 ZO020

EPC-2311-14U

Intel 8365U/DDR4 2400MHz 8GB/M.2 2280 SATA 256GB/Sata3.0 256GB/ 4G module/EIO-4L4LP4UGP ZO010/daughter card ZIC-DB-PWRGP ZO010
