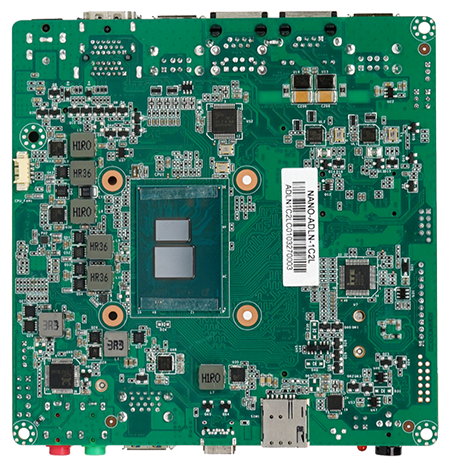

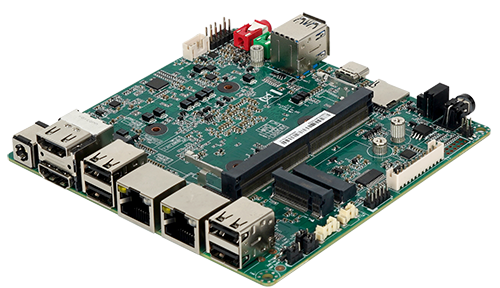

NANO-ADLN-1C2L
Detailed
Support Intel®Alder Lake-N (N305/N100, etc) Processor
Support single channel SO-DIMM, DDR5 4800MHz, Max16GB
Support 2*HDMI+VGA display output, triple display (synchrony/asynchrony)
Onboard 2*RTL8111H Gigabit LAN card
Support 2*USB3.2 Gen2 (10Gbps), 1*Type-C, 4*USB2.0;
Support 1*MicroSD card slot, 1*SIM card slot; 1*COM RS232;
1*M.2 M Key, support SATA/NVME adaptive;
1*M.2 E Key, support Wifi/Bluetooth module expansion;
1*M.2 B Key, support 5G module expansion;
DC12V power supply

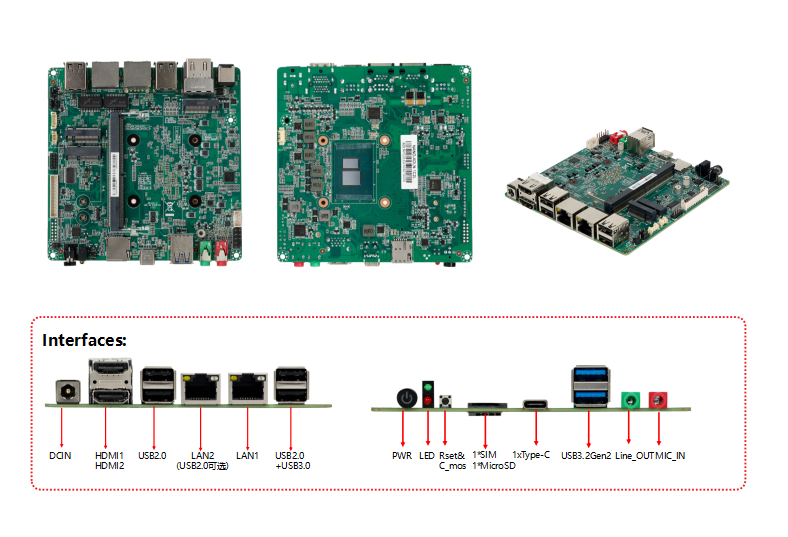

0755-83650405 | CPU | Intel®Alder Lake-N (N305/N100, etc) Processor | Rear I/O | 1*DC_IN |
| Chipset | Intel® SOC | 2*HDMI | |
| GPU | Intel® Ultra Core Graphics | 2*USB2.0 | |
| Display Output | 2*HDMI+VGA(optional) | 1*LAN2 (Optional 2*USB2.0) | |
| Multi Display | Triple display (synchrony/asynchrony) | 1*LAN1 | |
| USB | 2*USB3.2 Gen2 (10Gbps); 4*USB2.0 | 2*USB2.0 | |
| Memory | 1*SO-DIMM DDR5 4800MHz Max16GB | Front I/O | 1*PWRBTN |
| Audio | Onboard ALC897 audio decoding controller; | 2*LED 1 x Hard Disk Indicator (Red)+1 x Power Light (Green) | |
| Independent amplifier NS4251 3W@4Ω MAX | 1*Rset&CLR_CMOS | ||
| Network | Onboard 2*Realtek RTL8111H Gigabit LAN card | 1*SIM | |
| Storage | 1*M.2 M Key, support SATA/NVME adaptive | 1*MicroSD | |
| Expansion Slot | 1*M.2 E Key, support Wifi6/Bluetooth module expansion； | 1*Type-C | |
| 1*M.2 B Key, support 5G module expansion | 2*USB3.2 Gen2(10Gbps) | ||
| I/O Chip | IT8613E | 1*Line-OUT； 1*MIC-IN | |
| BIOS | AMI BIOS | Internal I/O | 1*F_AUDIO Pin |
| Power | DC 12V power supply | 1*Speaker Pin | |
| Cooling | Separate radiator required | 1*COM Pin | |
| Environment | Operating:0~60℃; Storage: -20~75℃ | 1*VGA Pin | |
| 0%~95% Relative Humidity,Non-condensing | 1*JLED Pin | ||
| Size | 120X120mm | 1*TPM Pin 1*Fpanel Pin |
