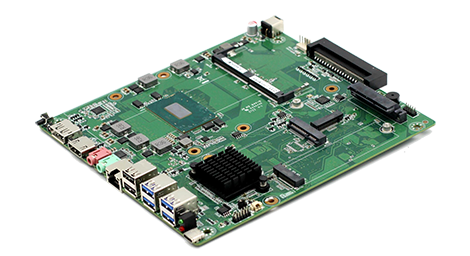

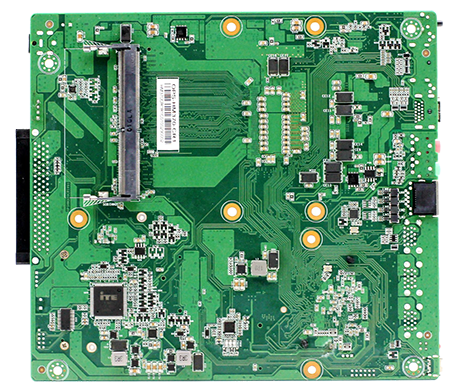

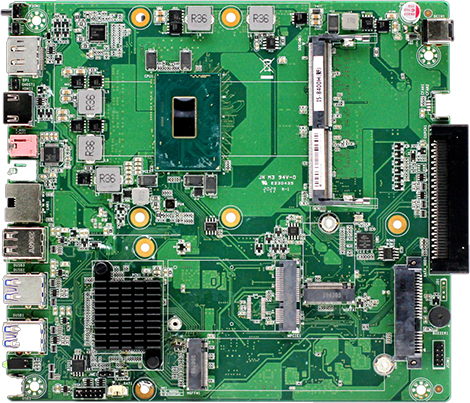

OPS-HM370-CR1
Detailed
The product meets the standard OPS-C design specifications
Intel ® Core Tiger Lake-H series processor
Supports VGA+HDMI1.4+DP1.2+HDMI2.0 display output
Supports HDMI2.0 with maximum support 4K@60FPS OPS interface
Supports 4 * USB3.1+2 * USB2.0+1 * Type-C USB3.1
Supports DDR4 dual channel memory 3200MHz Max64G
Support Key M NGFF M.2 interface, expandable SSD module
Support Key A NGFF M.2 interface, expandable WiFi+Bluetooth
Supports Mini PCIe interface and expandable video capture module
Support hardware one click system backup and restore
Unique design, supporting OPS interface for live and undamaged plugging and unplugging
Enhanced USB signal driving capability, compatible with various touch boxes and other devices
0755-83650405 | CPU | Support Intel® 8th/9th Coffee lake-H &Coffee lake-H refresh processor BGA1440 4C/8T or 6C/12T vProTM 45w/(35w cTDP) | I/O terminal display | 4 * USB3.1 port 2 * USB2.0 port 1 * HDMl port 1 * DP port 1 * LAN port 1 * MIC-IN port 1 * LINE OUT port 1 * PWR ON button 1 * CLR-CMOS&Reset button 1 * Recovery button (- key system restore) 1 * Power&HDD LED 1 * OPS-C port 1 * DC port |
| Chipset | Intel®HM370/HM375 | ||
| BIOS | support Intel® 8th/9th Coffee lake-H &Coffee lake-H refresh processor BGA1440 4C/8T or 6C/12T vProTM 45w/(35w cTDP) | ||
| Display output | Intel CPU built-in display core | ||
| Multi display support | DP1.2 、HDMI1.4、HDMI2.0 | ||
| USB | Three identical (different) steps | ||
| Memory | 4*USB3.1+2*USB2.0+1*Type-C USB3.1 | ||
| sound effects | 2*SO-DIMM DDR4 2666MHz Max32G | ||
| network card | On board Realtek ALC662HD audio decoding controller | ||
| Storage | 1*M.2 M Key（NGFF PCIe X and SATA self-adaption） 1*SATA_HDD(For 2.5" SSD) | ||
| WIFI | 1*M.2 A Key(For WIFI+Bluetooth Card) | ||
| 1*Mini PCIe （For wifi or Video Capture Extension) | |||
| I/O Chip | IT8784E | ||
| BIOS | AMI BIOS | ||
| Power | DC 12~19V | I/O interface | 1 * COM232 pin 1 * JME pin 1 * CPU-FAN pin 1 * VGA pin (expandable VGA display interface) |
| Mainboard size | 190X172MM | ||
| COOLING SYSTEM | Dual ball CPU heat sink | ||
| operation temperature | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ | ||
| 0%~95% relative humidity, non condensing |
