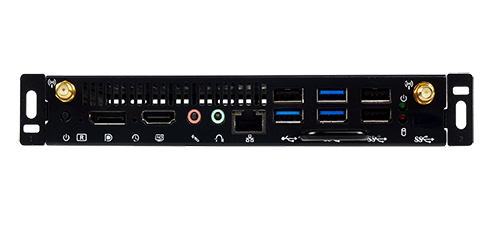

M2121(OPS-H510-CR1)
Detailed
The product meets the standard OPS-C design specifications
Support for Intel ® Comet Lake-S&Rocket Lake-S processor
Supports HDMI and DP display output
Supports HDMI2.0 with maximum support 4K@60FPS OPS end
Supports DP1.2 with maximum support 4K@60FPS IO end
Supports HDMI 1.4b with maximum support 4K@30FPS IO end
Supports DDR4 dual channel memory, better supporting 4K video encoding and decoding
Support Key M M.2 interface, expandable SSD module
Support Key E M.2 interface, expandable WiFi 6+Bluetooth
Supports 3 * USB3.2 GEN1+3 * USB2.0
Adhere to EUP (ErP) energy-saving standards, with standby power consumption below 0.5W
USB supports short circuit protection, enhances drive capability, and is compatible with various devices
Built in turbine intelligent radiator for excellent heat dissipation performance
0755-83650405 | CPU | Support for Intel ® 10/11 generation Core ™ I7/Core ™ I5/Core ™ I3/Pentium ®/ celeron ® Processor Comet Lake-S&Rocket Lake-S LGA1200 processor | I/O terminal display | Intel ® UHD Graphics Integrated Graphics Card HDMI: Up to display resolution 4096x2160@30Hz DP: Up to display resolution 4096x2304@60Hz |
| Chipset | Intel ® H510 | ||
| BIOS | AMI BIOS, supporting write protection, diskless startup, wake-on-LAN, power on startup, timed startup, device intelligent identification and other functions | ||
| Memory capacity | 2xSO-DIMM，DDR4 2666/2933/3200MHz Max128GB | ||
| Storage interface | 1 x SATA interface (for 2.5 "hard drive) SATA3.0 | ||
| 1 x M.2 M Key（NGFF SATA3.0），Support M.2 2280mm SATA SSD | I/O interface | USB 3 x USB3.2 GEN1 3xUSB2.0 Socket 1 x DC power socket 1 x OPS80pin LED 1 x POWER LED 1 x HDD LED Button 1 x Power Button 1 x RESET (short press to restart and long press CLR-CMOS) 1 x Ghost key (reserved function) |
|
| OPS display | HDMI2.0 display resolution can reach 4096x2304@60Hz (HDMI 1.4 optional) | ||
| Network | Wired 1 x RTL8111H Gigabit Ethernet (onboard RJ45) | ||
| Wireless 1 x M.2 E Key（For WIFI6+Bluetooth Card） | |||
| Audio frequency | 1 x LINE-OUT &1 x MIC-IN | ||
| Power Input | DC 12-19V | ||
| Watchdog | Functional downtime and system restart; | ||
| Interval 1~65535sec | |||
| Operating system | windows10 / Linux | ||
| Environment | Working temperature: 0 ° C~60 ° C Storage temperature: -20~70 ° C | ||
| Size | 180 (L) x 195 (W) x 30(H)mm |
