Model

PPC-1211

Pilot lamp

Reserved power status indicator light under the screen

Dimensions

292x190x43mm

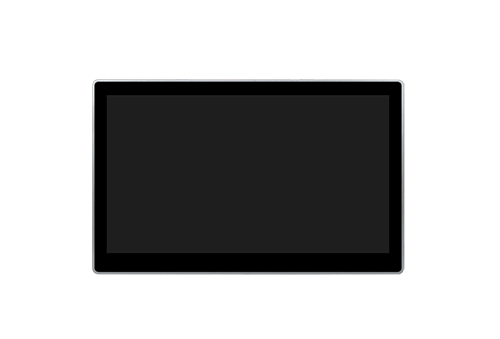

Display screen

11.6

Trumpet

2 x 4 ? 3W

Weight

< 2.0kg

Touch Screen

capacitive touch screen

Heat dissipation method

No fan

Color

Space Grey

Resolution

1366*768/1920*1080

Overall Power Consumption

<18W (screen 4W)

Chassis material

Aluminum alloy

Brightness

300cd/㎡

Installation method

Compatible with embedded, wall mounted, and desktop versions

CPU

Baytrail

Gemini Lake

BIOS

AMI  BIOS

AMI  BIOS

Chipset

Intel® SOC

Intel® SOC

Pattern display

Intel ®  HD Graphics nuclear display

Intel® UHD Graphics 600

Network

Realtek RLT 8111H/8111G Gigabit network card

Realtek RLT 8111H/8111G Gigabit network card

Sound effects

ALC897 HD Audio Decoding Controller

ALC897 Audio Decoding Controller

Memory

DDR3L 1333MHz Max 8G

DDR4 2933MHz Max32GB

Hard disk

1*Sata，1*Mini-Sata

1*Mini-Sata

Function

Supports 1 * Mini PCIE (supporting WiFi/4G modules), supports power on self start, watchdog, and network wake-up

1 * mPCIE, supporting WIFI/Bluetooth module expansion

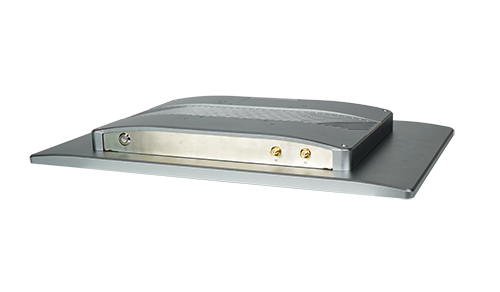

Upper I/O interface

1 * Switch
2 * Antenna
2 * COM

1 * Switch
2 * Antenna
2 * COM

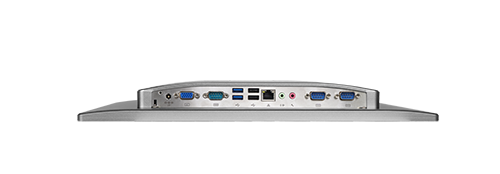

Lower I/O interface

1 * DC IN port
1 * LAN port
4 * USB3.0 port
1 * SIM card slot
1 * VGA port
1 * LINE OUT port
1 * MIC-IN port
2 * USB2.0
1 * M3 grounding screw hole

1 * DC IN port
1 * LAN port
4 * USB3.0 port
1 * HDMI port
1 * COM
1 * LINE OUT port
1 * MIC-IN port
2 * USB2.0
1 * M3 grounding screw hole

Power supply

DC 12V input

DC 12V input

OS  system

Windows 7 / Windows 10 / Linux

Certificate

CCC / CE / RoHs/FCC

National standard

Parameter Description

EMC

GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment

Radiation disturbance (B) level

Conducted disturbance (B) level

GB/T 17618-2015

Information technology equipment immunity limits and measurement methods

Meet the requirements of 6KV contact discharge and 12KV air discharge

Safety

GB 4943.1-2011
Information technology equipment security - Part 1: General requirements

Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA

Environment

GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
Environmental Test

Working temperature: 0 ℃~50 ℃
Storage temperature: -20 ℃~70 ℃
Damp heat: 40 ℃ 95% RH
Panel protection level: IP65
Drop in packaging: The machine is packaged at a height of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse width of 11ms, and 3 times of impact in the working direction Noise: (0) dB

Model

Specifications Description

Remarks

PPC-1211

11.6 LCD screen/capacitive touch screen /J1900/DDR3L  1333MHz  4GB/M-SATA 128GB

PPC-1211

11.6LCD screen/capacitive touch screen /J4125 /DDR4 2133/2400MHz  4GB/M.2 2280 Sata 128GB
