PPC-2111
Detailed
Support for Intel ® Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation Whiskeylake&10th generation Cometlake U processors
Supports SO-DIMM, M-SATA, M.2 Sata, M.2 NVME storage

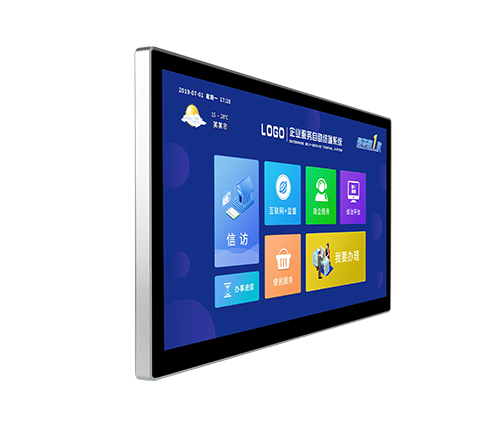

Standard 21.5-inch high-definition display screen, capacitive touch screen, supporting dual display
Standard configuration with 4USB and 1LAN interfaces, expandable with 2USB and multi specification COM interfaces
Supports 1 * MINI-PCIE (for WIFI), 1 * SIM, and supports 3G, 4G, and 5G modules
Supports VESA bracket installation, wall mounted and desktop mounted
The complete machine has a windless design, patented industrial design, and is aesthetically pleasing
Panel protection level: IP65 waterproof and dustproof
ESD Protection: ±6kV (Contact ), ± 12kV (Air)
The product can be widely used in industries such as industrial automation, environmental monitoring, wind power generation, 3D machine vision inspection, etc

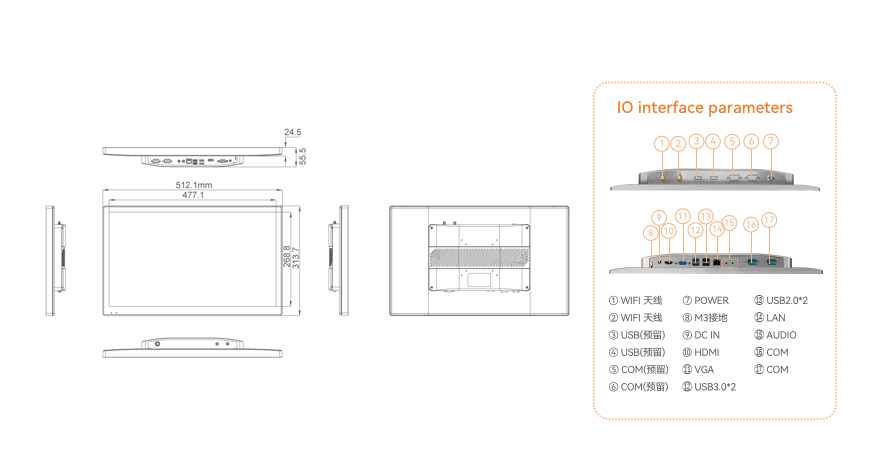

0755-83650405 | Product Model | PPC-2111 | Pilot lamp | Reserved power status indicator light under the screen | Dimensions | 511x313x42mm |
| Display | 21.5 | Trumpet | 2 x 4 ? 3W | Weight | < 3.4kg |
| Touch Screen | Capacitive Touch Screen | Heat dissipation | Fanless | Product colour | Space Gray |
| Resolution Ratio | 1920*1080 | Overall Power Consumption | <29W (screen 15W), slightly higher power consumption for 6-10 generations | Chassis material | Aluminum alloy structure |
| Luminance | 300cd/㎡ | Installation Method | Compatible with embedded, wall mounted, and desktop versions |
| CPU | Support for Intel ® Bay Trail J1900 processor | Support Intel® Gemini lake J4125/J4105/N4000 |
| BIOS | AMI BIOS | AMI BIOS |
| Chipset | Intel® SOC | Intel® SOC |
| Display | Intel ® HD Graphics integrated graphics card | Intel UHD Graphics 600 |
| Network | Realtek RTL8111 | RTL8111H/RTL8111G |
| Audio | Realtek ALC269HD | Realtek ALC269HD |
| Memory | Single strip DDR3L 1333MHz Max 8G | Single strip DDR4 2133/2400MHz Max 8G |
| Hard dive | M-SATA 128G | M-SATA 128GB |
| Functions | Supports WiFi, Bluetooth, 4G, and watchdog functions | Supports WiFi, Bluetooth, 4G, and watchdog functions |
| Front I/O | 1 * Switch (with LED)； 2 * Antenna； 2 * USB/2 * COM (reserved) | 1 * Switch (with LED)；2 * Antenna； 2 * USB/2 * COM (reserved) |

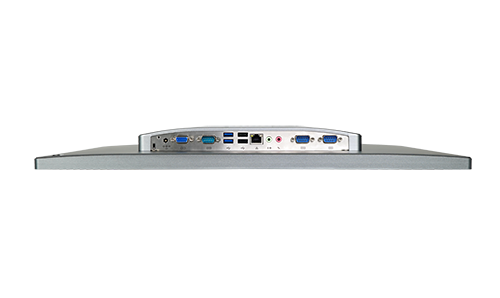

| Rear I/O | 1 * LINE OUT interface 1 * MIC-IN interface 1 * LAN interface 3 * USB2.0 interface 1 * USB3.0 interface 1 * HDMI interface 1 * VGA interface 1 * DC interface 2*COM232 1 * M3 grounding screw hole |
1 * LINE OUT interface 1 * MIC-IN interface 1 * LAN interface 2 * USB2.0 interface 2 * USB3.0 interface 1 * VGA interface 1 * HDMI interface 1 * DC interface 2*COM232 1 * M3 grounding screw hole |
| Power IN | DC 12V DC power supply | DC 12V DC power supply |
| OS support | Windows 7 / Windows 10 / Linux | Windows 7 / Windows 10 / Linux |
| Power dapter | INPUT : 100-240V50/60Hz ; Output : 12.0V/5.0A | INPUT : 100-240V50/60Hz ; Output : 12.0V/5.0A |
| Certification | CCC / CE /FCC/ RoHs | CCC / CE /FCC/ RoHs |
| CPU | Support for Intel ® Elkhart Lake J6412/J6413 processor | Support for Intel ® Kaby Lake&Sky Lake processors (6th to 7th generation) |
| BIOS | AMI BIOS | AMI BIOS |
| Chipset | Intel® SOC | Intel® SOC |
| Display | Intel® UHD Graphics | Intel® Graphics 610 |
| Network | Realtek 8111H/8111G | Realtek RTL8111H/8111G |
| Audio | Realtek ALC269HD | HS-100B Audio Decoding Controller |
| Memory | Single strip DDR4 3200MHz Max 32G | DDR4 2133MHz Max 32G |
| Hard dive | M.2 2280 Sata 128GB | M.2 2280 NVME 256GB |
| Functions | Supports WiFi, Bluetooth, 4G, 5G modules | Supports WiFi, Bluetooth, 4G, 5G modules |
| Front I/O | 1 * Switch (with LED)；2 * Antenna；2 * USB/2 * COM (reserved) | 1 * Switch (with LED)；2 * Antenna； 2 * USB/2 * COM (reserved) |
| Rear I/O | 1 * LINE OUT interface 1 * MIC-IN interface 1 * LAN interface 2 * USB2.0 interface 2 * USB3.2 Gen2 interface 1 * VGA interface 1 * HDMI interface 1 * DC interface 2*COM232 1 * M3 grounding screw hole |
1 * LINE OUT interface 1 * MIC-IN interface 1 * LAN interface 2 * USB2.0 interface 2 * USB3.0 interface 1 * VGA interface 1 * HDMI interface 1 * DC interface 2*COM232 1*CLR_ CMOS buttons 1 * M3 grounding screw hole |
| Power IN | DC 12V DC power supply | DC 12V DC power supply |
| OS support | Windows 7 / Windows 10 / Linux | Windows 7 / Windows 10 / Linux |
| Power Adapter | INPUT : 100-240V50/60Hz | INPUT : 100-240V50/60Hz |
| Output : 12.0V/5.0A | Output : 12.0V/5.0A | |
| Certification | CCC / CE / FCC / RoHs | CCC / CE / FCC/ RoHs |
| CPU | Support for Intel ® 8th generation Whiskeylake&10th generation Cometlake U processor |
| BIOS | AMI BIOS |
| Chipset | Intel® SOC |
| Display | Intel® UHD Graphics |
| Network | Realtek RLT8111H/8111G |
| Audio | HS-100B USB Audio Decoding Controller |
| Memory | DDR4 2666MHz Max 32G |
| Hard dive | M.2 2280 NVME 256GB |
| Functions | Support WiFi, Bluetooth, 3G/4G module, 5G module, electric auto start, hardware monitoring, wake-on-LAN |
| Front I/O | 1 * Switch (with LED)；2 * Antenna； |
| 2 * USB/2 * COM (reserved) | |
| Rear I/O | 1 * LINE OUT interface 1 * MIC-IN interface 1 * LAN interface 2 * USB3.2 Gen2 interface 2 * USB3.2 Gen2 interface 1 * VGA interface 1 * HDMI interface 1 * DC interface 2*COM232 1*CLR_ CMOS buttons Note: USB3.2 is Gen1 5Gbps when using the 8th generation U processor |
| Power IN | DC 12V DC power supply |
| OS support | Windows 7 / Windows 10 / Linux |
| Power Adapter | INPUT : 100-240V50/60Hz Output : 12.0V/5.0A |
| Certification | CCC / CE / FCC / RoHs |
| National standard | Parameter Description | |
| EMC | GB/T 9254.1-2021 Radio disturbance limits and measurement methods for information technology equipment |
Radiation disturbance (B) level Conducted disturbance (B) level |
| GB/T 17618-2015 Information technology equipment immunity limits and measurement methods | Meet the requirements of 6KV contact discharge and 12KV air discharge | |
| Safety | GB 4943.1-2011 Information technology equipment security - Part 1: General requirements |
Grounding resistance: ≤ 0.1 Ω Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC Insulation resistance: ≥ 100M Ω Leakage current: ground leakage current ≤ 3.5mA |
| Environment | GB/T 9813.4-2017 General specification for computers - Part 4: Industrial application microcomputers GB/T 2423 Environmental Test |
Working temperature: 0 ℃~50 ℃ Damp heat: 40 ℃ 95% RH |
|
Product Type |
Specifications Description |
Remarks |
|
PPC-2111 |
21.5 LCD screen/capacitive touch screen/J1900/DDR3L 1333MHz 4GB/M-SATA 128GB |
|
|
PPC-2111 |
21.5 LCD screen/capacitive touch screen/J4125/DDR4 2133/2400MHz 4GB/M-SATA 128GB |
|
|
PPC-2111 |
21.5 LCD screen/capacitive touch screen/J6412/DDR4 3200MHz 4GB/M2 2280 Sata 128GB |
|
|
PPC-2111 |
21.5 LCD screen/capacitive touch screen/6200U/DDR4 2133MHz 8GB/M2 2280 NVME 256GB |
|
|
PPC-2111 |
21.5 LCD screen/capacitive touch screen/8145U/DDR4 2666MHz 8GB/M2 2280 NVME 256GB |
USB3.2為 Gen1 5Gbps |
