ZO-H310P-12C
Detailed
Intel® H310 Chipset
Support Intel CoffeeLake/Coffeelake-R Desktop CPU
Two SO-DIMM DDR4 up to 32GB DDR4 2666 MHz
Support VGA/HDMI/eDP, Asynchronous/synchronous Display
Support 4 * USB 3.0, 10 * USB 2.0,
Support 2*SATAIII，1*mSATA
1*RS232, 1*RS232/422/485
Support M.2 WIFI and 3G/4GModule
Line-in, Mic-in, Line-out
Support PCIe *1 (Gen 3) Expansion Slot
0755-83650405 | Specification parameters | |||

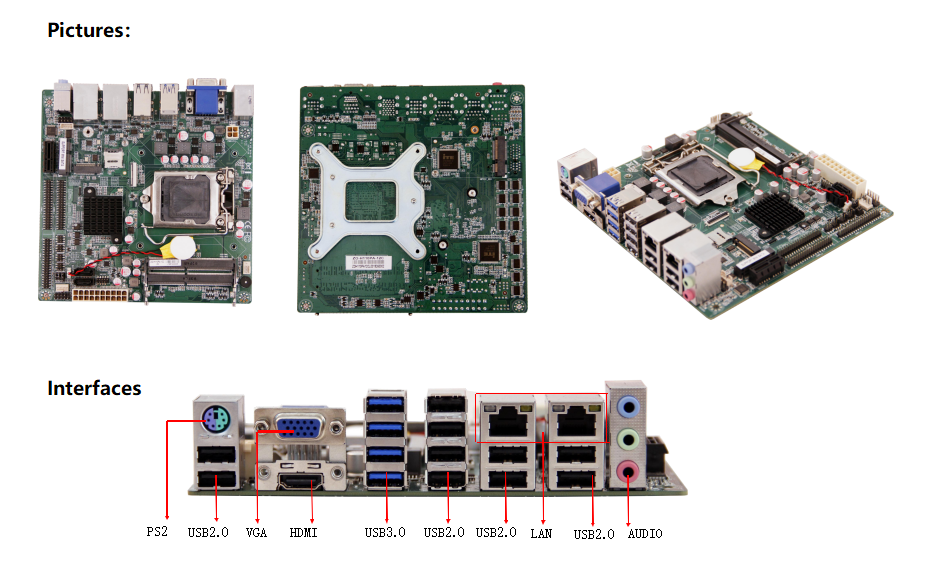

| CPU | 8th &9th Intel LGA1151 series processor | Rear I/O | 2*LAN |
| Chipset | H310 | 4*USB3.1 | |
| GPU | Intel Built-in Display Core | 10*USB2.0 | |
| Display | VGA 、HDMI、EDP | 1*VGA | |
| Multiple Display |
VGA+HDMI/HDMI+EDP/VGA+EDP | 1*HDMI | |
| 1*AUDIO | |||
| USB | 4*USB3.1+10*USB2.0 | 1*PS2 | |
| Memory | 2*SO-DIMM DDR4 2400/2666MHz 32GB | intermal I/O | 1*F-AUDIO PIN |
| Audio | Onboard Realtek ALC662HD;+NS4258 Power amplifier chip ; output power： 3.2W× 2(4? load), 5.2W × 2(2? load) | 1*F_PANEL PIN | |
| 1*SPEAKER PIN | |||
| 3*COM_CONN PIN（12*COM232，COM2 Support RS232/422/485） | |||
| Network | Onboard 2*Realtek RTL8111H Gigabit LAN | 2*SATA PIN | |
| Storge | 2*SATA3.0 1*M-SATA （Sata SSD） | 1*GPIO PIN | |
| WIFI | 1*M.2 E Key（For WIFI+Bluetooth） | 1*SYS-FAN PIN | |
| I/O Chip | 2*ITE8786E-I | 1*CPU-FAN PIN | |
| BIOS | AMI BIOS | 1*20PIN AT* PIN | |
| power | 4PIN AT* /20PIN AT* power supply | 1*4PIN AT* PIN | |
| Cooling | Need to equipped 115*CPU fan | 1*SIM Slot | |
| Operating Environment | 0~60℃; 0% ~ 95% Relative Humidity,Non-condensing | 1*FPC（EDP） | |
| Size | 170*170MM | 1*PCIe | |
