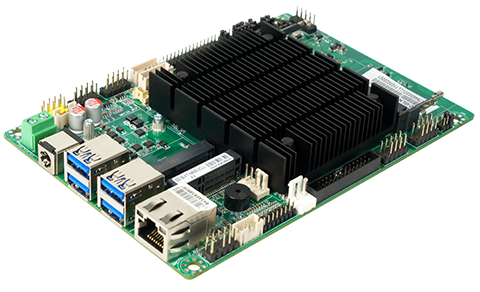

DZ-GLKT-2C1L
Detailed
Product Parameters
Support for Intel ® Gemini Lake J4125/J4105/N4000 processor
Supports single channel SO-DIMM, DDR4 2400MHz, Max8GB
Supports LVDS1/EDP1+LVDS2/EDP2+HDMI display output, three displays simultaneously asynchronous
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card
Supports 4 * USB3.2 Gen1 (5Gbps), 6 * USB2.0
1 * miniSATA
1 * miniPCIE, supporting WiFi/Bluetooth module expansion;
DC 12V power supply (optional with air head power supply)
0755-83650405 | CPU | Intel® Gemini Lake J4125/J4105/N4000 processor |
| Chipset | Intel® SOC |
| Display chip | Intel ® Ultra High Definition Graphics Card 600 |
| Display output | LVDS1/EDP1+LVDS2/EDP2+HDMI |
| Multi display support | Three display synchronous asynchronous |
| USB | 4*USB3.2 Gen1（5Gbps） ，6*USB2.0 |
| Memory | 1*SO-DIMM DDR4 2400MHz Max8GB |
| sound effects | On board ALC269 audio decoding controller; |
| Integrated power amplifier 2.2W@4 Ω MAX | |
| Network card | On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card |
| storage | 1*miniSATA |
| expansion slot | 1 * miniPCIE, supporting WiFi/Bluetooth module expansion |
| I/O chip | IT8784E-I |
| BIOS | AMI BIOS |
| power supply | DC/AT 12V (optional short head configuration) |
| Cooling System | Equipped with fanless heat sink |
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ |
| 0%~95% relative humidity, non condensing | |
| Size | 148X102mm |

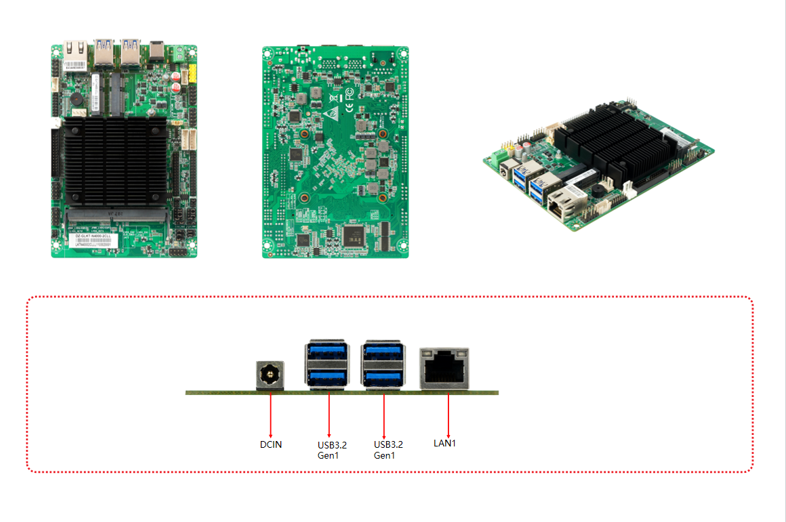

| Post I/O interface | 1 * DC_ IN port (optional 4PIN aviation head) 2 * USB3.2 Gen1 (5Gbps) port 2 * USB3.2 Gen1 (5Gbps) port 1 * LAN port |
| Internal I/O | 1 * F_ AUDIO pin 1 * Speaker pin 1 * JHDMI pin 1 * CPU_ FAN pin 1 * LPT_ PWR pin 1 * LPT pin 2 * COM pin 1 * F_ PANEL pin 2 * LVDS/EDP pins 2 * INCN socket 3 * F_ USB2.0 pin (expandable 6 * USB2.0) 1 * JRJ11 socket 1 * AT_ IN socket |
| Model | DIMM | ExpansionSStorageStorage | Storage | Display output | Radiating | Power supply | |||||||
| USB2.0 | USB3.0 | LAN | LPT | SPEAKE | MINI-PCIE | Msata | LVDS | EDP | HDMI | DC | |||
| DZ-GLKT-N4000-2CLE | 1 | 6 | 4 | 1 * Gigabit | √ | √ | √ | √ | √ | √ | √ | Profile | 12V |
| DZ-GLKT-J4125-2CLE | 1 | 6 | 4 | 1 * Gigabit | √ | √ | √ | √ | √ | √ | √ | Profile | 12V |
| DZ-GLKT-J4105-2CLE | 1 | 6 | 4 | 1 * Gigabit | √ | √ | √ | √ | √ | √ | √ | Profile | 12V |
| DZ-GLKT-N4000-2C2E | 1 | 6 | 4 | 1 * Gigabit | √ | √ | √ | √ | √ | √ | √ | Profile | 12V |
| DZ-GLKT-J4125-2C2E | 1 | 6 | 4 | 1 * Gigabit | √ | √ | √ | √ | √ | √ | √ | Profile | 12V |
| DZ-GLKT-J4105-2C2E | 1 | 6 | 4 | 1 * Gigabit | √ | √ | √ | √ | √ | √ | √ | Profile | 12V |
| DZ-GLKT-N4000-2CLL | 1 | 6 | 4 | 1 * Gigabit | √ | √ | √ | √ | √ | √ | √ | Profile | 12V |
| DZ-GLKT-J4125-2CLL | 1 | 6 | 4 | 1 * Gigabit | √ | √ | √ | √ | √ | √ | √ | Profile | 12V |
| DZ-GLKT-J4105-2CLL | 1 | 6 | 4 | 1 * Gigabit | √ | √ | √ | √ | √ | √ | √ | Profile | 12V |
