HPC-1712
Detailed
Support for Intel ® 8th generation Whiskeylake&10th generation Cometlake U processor
Supports SO-DIMM, M-SATA, M.2 Sata, M.2 NVME storage
Standard 17 inch high-definition display screen, resistive touch screen, supporting dual display
Standard dual network ports, some configurations support Intel encryption TPM2.0, and support 8 * GPIO
Supports 1 * MINI-PCIE (for WIFI), 1 * SIM, and supports 3G, 4G, and 5G modules
Supports VESA bracket installation, wall mounted and desktop mounted
12-19V DC input (optional 9-36V wide voltage power module), with a wind free design, patented industrial design, and elegant appearance
Panel protection level: IP65 waterproof and dustproof
ESD Protection: ±6kV (Contact ), ± 12kV (Air)
The product can be widely used in industries such as MES, store displays, self-service terminals etc.

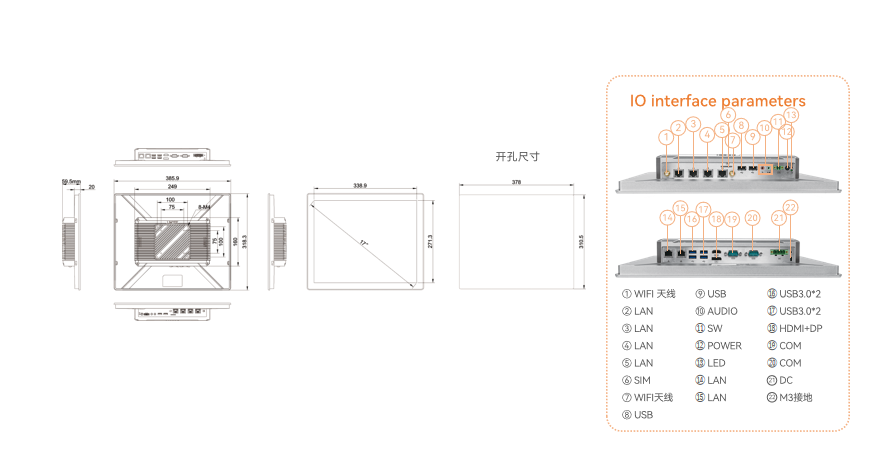

0755-83650405 | Product Model | HPC-1712 | Pilot lamp | Reserved power status indicator light under the screen | Dimensions | 386x318x60mm |
| Display | 17 | Trumpet | 2 x 4 ? 3W | Weight | < 4.0kg |
| Touch Screen | Resistive Touch Screen | Heat dissipation | Fanless | Product colour | Space Gray |
| Resolution Ratio | 1280*1024 | Overall Power Consumption | <25W (screen 7.4W) | Chassis material | Aluminum alloy structure |
| Luminance | 300cd/㎡ | Installation Method | Compatible with embedded, wall mounted, and desktop versions |
| Processor | Intel Whiskey Lake series i3/ i5/ i7 Processor | ||
| BIOS | AMI （256M） | ||
| Chipset | Intel® SOC | ||
| Display | Intel® UHD Graphics | ||
| Network | Intel i226-AT + I219-LM | ||
| Audio | HS-100B | ||
| Memory | DDR4 2400MHz Max 32G | ||
| Hard dive | M. 2 2280 NVME128GB, Scalable SATA 3.0 2.5-inch HDD | ||
| Functions | Support WiFi, Bluetooth, 3G/4G/5G modules, diskless startup, wake-on-LAN, power on and power on | ||
| Front I/O | 1 * Power on button (LED) 2*LED（HDD&WiFi） 1 * SW, 2 pin Phoenix terminal 1*Mic_ in 1*Line_ out 2 * USB2.0 interface 1 * SIM card slot 2 * RS232+8-way GPIO or maximum 16 way GPIO interface 2 * Antenna |
Rear I/O | 2 * LAN interface 4 * USB3.1 interface 2 * HDMI interface 2*COM 1 * DC IN interface, 4pin Phoenix terminal 1 * M3 grounding screw hole 4 * Antenna 1 * RST button, in case of shutdown, long press for ≥ 3 seconds to clear BIOS configuration; In the case of startup, briefly press 0.5~1s to restart 1 * REC button, system restore |
| Power IN | 12-19V DC input (optional 9-36V wide voltage power module) | ||
| Power AC | AC: 100-240V 50-60 HZ ,19v,5.0A 90W | ||
| Expansion | Basic configuration, GPIO adapter extension, WiF module, 12-19V DC input Four network port expansion, GPIO conversion expansion, 12-19V DC input POE quad port expansion, GPIO adapter expansion, 12-19V DC input Six serial port expansion, WiF module, 9-36V wide voltage power module Fourteen USB expansion, 4G module, GPIO adapter expansion, 12-19V DC input |
||
| operating system | Windows 7 / Windows 10 / Linux | ||
| certification | CCC / CE /FCC/ RoHs | ||
| National standard | Parameter Description | |
| EMC | GB/T 9254.1-2021 Radio disturbance limits and measurement methods for information technology equipment |
Radiation disturbance (B) level Conducted disturbance (B) level |
| GB/T 17618-2015 Information technology equipment immunity limits and measurement methods | Meet the requirements of 6KV contact discharge and 12KV air discharge | |
| Safety | GB 4943.1-2011 Information technology equipment security - Part 1: General requirements |
Grounding resistance: ≤ 0.1 Ω Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC Insulation resistance: ≥ 100M Ω Leakage current: ground leakage current ≤ 3.5mA |
| Environment | GB/T 9813.4-2017 General specification for computers - Part 4: Industrial application microcomputers GB/T 2423 Environmental Test |
Working temperature: -10℃~60 ℃ Damp heat: 40 ℃ 95% RH |
|
Product Type |
Specifications Description |
Remarks |
|
HPC-1712 |
17 inch LCD screen/resistive touch screen/Intel 8365U/DDR4 2400MHz 8GB/M2 2280 SATA 128GB/WiFi module/daughter card ZIC-DB-PWRGP ZO010 |
|
|
HPC-1712-4L |
17 inch LCD screen/resistive touch screen/Intel 8365U/DDR4 2400MHz 8GB/M2 2280 SATA 128GB/daughter card EIO-4L ZO020/daughter card ZIC-DB-PWRGP ZO010 |
|
|
HPC-1712-POE4L |
17 inch LCD screen /electrical touchscreen/Intel 8365U/DDR4 2400MHz 8GB/M.2 2280 SATA 128GB/EIO-4LP ZO020/child calZIC-DB-PWRGP ZO010 |
|
|
HPC-1712-6C |
17 inch LCD screen/electrical touchscreen/Intel 8365U/DDR4 2400MHz 8GB/M.2 2280 SATA 128GB/EIO-4LP ZO020/child calZIC-DB-PWRGP ZO010 |
|
|
HPC-1712-14U |
17 inch LCD screen/Electrical touchscreen/Intel 8365U/DDR4 2400MHz 8GB/M.2 2280 SATA 256GB/Sata3.0 256GB/4Gmodules/EIO-4L4LP4UGP ZO010type/child calZIC-DB-PWRGP ZO010type |
|
