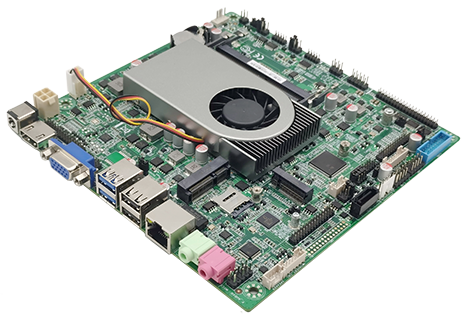

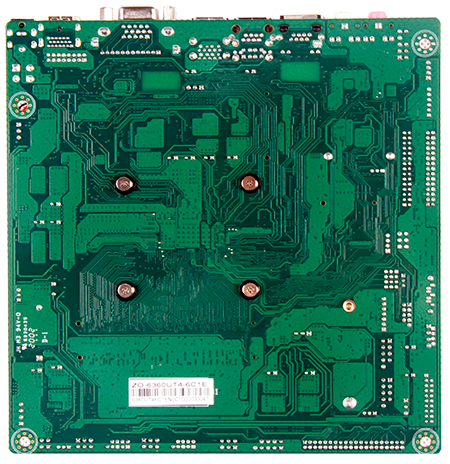

ZO-SKYUTA-6CD8
Detailed
Support for Intel ® Kaby Lake&Sky Lake Processor
Supports dual channel SO-DIMM, DDR4 2133MHz, Max32GB
Supports LVDS/EDP1+EDP2/HDMI+VGA display, three displays simultaneously and asynchronously
On board 2 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional with single network)
Supports 4 * USB3.2 Gen1 (5Gbps), 4 * USB2.0
1 * M.2 M Key (PCIEX4/SATA signal adaptation); 1 * SATA3.0
1 * mPCIE, supporting WiFi/Bluetooth/4G module expansion; 1 * SIM
DC 12V power supply

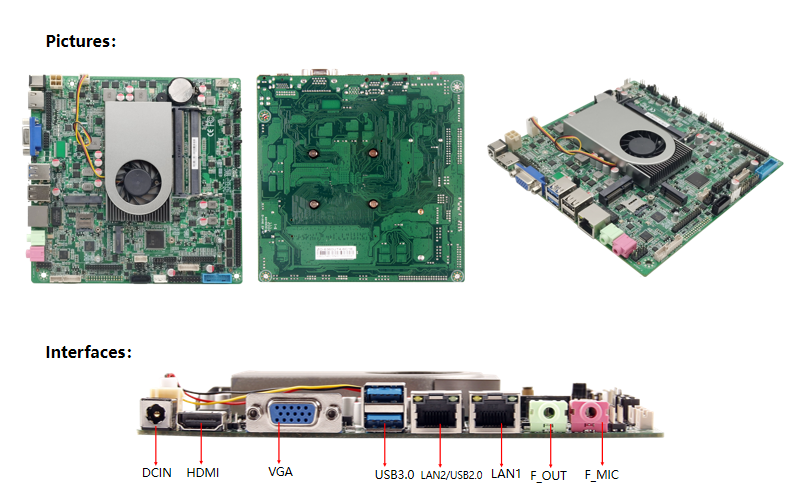

0755-83650405 | CPU | Intel® Kaby Lake & Sky Lake Processor | Post I/O interface | 1 * DC_ IN port 1 * HDMI port 1 * VGA port 1 * CLR_ CMOS buttons 2 * USB3.2 Gen1 (5Gbps) port 1 * LAN2 port (optional with 2 * USB2.0) 1 * LAN1 port 1 * HP_ OUT port 1 * MIC_ IN port |
| Chipset | Intel® SOC | ||
| Display chip | Intel ® Core graphics card | ||
| Display output | LVDS/EDP1+EDP2/HDMI+VGA | ||
| Multi display support | Three display synchronous asynchronous | ||
| USB | 4*USB3.2 Gen1（5Gbps） ，4*USB2.0 | ||
| Memory | 2*SO-DIMM DDR4 2133MHz Max32GB | ||
| sound effects | On board HS-100B audio decoding controller | Internal I/O | 1 * F_ AUDIO pin 1*Speker pin 1 * INVERT pin 2 * EDP pin 1 * LVDS pin 1 * BKCL pin 1 * SATA pin 1 * SATA_ PWR pin 2 * F_ USB2.0 pin (expandable 4 * USB2.0) 1 * F_ USB3.0 pin (expandable 2 * USB3.0) 1 * JPS2 pin 1 * J_ PRINT pin 6 * COM pin 1 * F_ PANEL pin 1 * AXT_ IN socket 1 * SYS_ FAN socket 1 * CPU_ FAN socket 1 * JVGA pin |
| Independent power amplifier NS4251（ 3W@4 Ω MAX) | |||
| Network card | On board 2 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional single network) | ||
| storage | 1*M.2 M Key ;1*SATA3.0 | ||
| expansion slot | 1 * mPCIE, supporting WiFi/Bluetooth/4G module expansion; | ||
| I/O chip | IT8786E-I | ||
| BIOS | AMI BIOS | ||
| power supply | DC / 4Pin ATX 12V power supply | ||
| Cooling System | Equipped with fan and radiator | ||
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ | ||
| 0%~95% relative humidity, non condensing | |||
| Size | 170X170mm |
| Model | CPU | DIMM | Expansion | Storage | Display ports | Cooling | Power | Size (mm) | ||||||||||||
| USB2.0 | USB3.0 | COM232 | RS | LAN | LPT | SPEAKE | MINI-PCIE | SIM | M.2 | SATA | VGA | LVDS | EDP | HDMI | DC | |||||
| 485 | KEYB/M | |||||||||||||||||||
| ZO-6360UTA-6C1E2L | I5-6360U | 2 | 4 | 4 | 6 | 1 | 2*100M | √ | √ | √ | √ | √ | 1 | 1 | / | 2* | 1 | With FAN | 12V | ITX |
| ZO-6200UTA-6C1E2L | I5-6200U | 2 | 4 | 4 | 6 | 1 | 2*100M | √ | √ | √ | √ | √ | 1 | 1 | / | 2* | 1 | With FAN | 12V | ITX |
| ZO-6360UTA-6C1E | I5-6360U | 2 | 6 | 4 | 6 | 1 | 1*100M | √ | √ | √ | √ | √ | 1 | 1 | / | 2* | 1 | With FAN | 12V | ITX |
| ZO-7167UTA-6C1E | I3-7167U | 2 | 6 | 4 | 6 | 1 | 1*100M | √ | √ | √ | √ | √ | 1 | 1 | / | 2* | 1 | With FAN | 12V | ITX |
| ZO-6360UTA-6C1L | I5-6360U | 2 | 6 | 4 | 6 | 1 | 1*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-6157UTA-6C1L | I3-6157U | 2 | 6 | 4 | 6 | 1 | 1*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-6567UTA-6C1L | I7-6567U | 2 | 6 | 4 | 6 | 1 | 1*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-7167UTA-6C1L | I3-7167U | 2 | 6 | 4 | 6 | 1 | 1*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-6006UTA-6C1L | I3-6006U | 2 | 6 | 4 | 6 | 1 | 1*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-6200UTA-6C1L | I5-6200U | 2 | 6 | 4 | 6 | 1 | 1*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-6300UTA-6C1L | I5-6300U | 2 | 6 | 4 | 6 | 1 | 1*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-6157UTA-6C2L | I3-6157U | 2 | 4 | 4 | 6 | 1 | 2*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-6567UTA-6C2L | I7-6567U | 2 | 4 | 4 | 6 | 1 | 2*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-6300UTA-6C2L | I5-6300U | 2 | 4 | 4 | 6 | 1 | 2*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-6360UTA-6C2L | I5-6360U | 2 | 4 | 4 | 6 | 1 | 2*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
| ZO-7167UTA-6C2L | I3-7167U | 2 | 4 | 4 | 6 | 1 | 2*100M | √ | √ | √ | √ | √ | 1 | 1 | 1 | 1* | 1 | With FAN | 12V | ITX |
1*and 2* note：：1*E
DP2 PIN（Choose one of HDMI or EDP2 and use HDMI by default. EDP2 this pin has no function by default, if you need to use it, we need to update the bios firmware)
