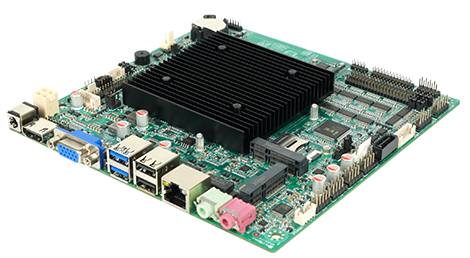

ZO-GLKTF-10C2L
Detailed
Support Intel® Gemini lake J4125 Processor Quad core Quad Threads 2.0 GHz~2.7 GHz；Intel® UHD Graphics 600
1*SO-DIMM DDR4 2133/2400MHz Max8GB
Support VGA、HDMI/EDP2、LVDS/EDP1, Support Triple Display
Support HDMI2.0 4K 60Hz Output
Onboard 1*RTL8106 100M（Options: 1000M、2*LAN）
Support 2*USB3.2 GEN1(5Gbps)+6*USB2.0
Support 10*COM232，COM2 can support RS485/422；COM3 can support RS485
Support 1*SATA3.0、1*mSATA ,SATA SSD
Onboard 1*MiniPCIe，Support Wifi+Bluetooth /4G Module
DC12V Power Supply
0755-83650405 | Specification parameters | |||

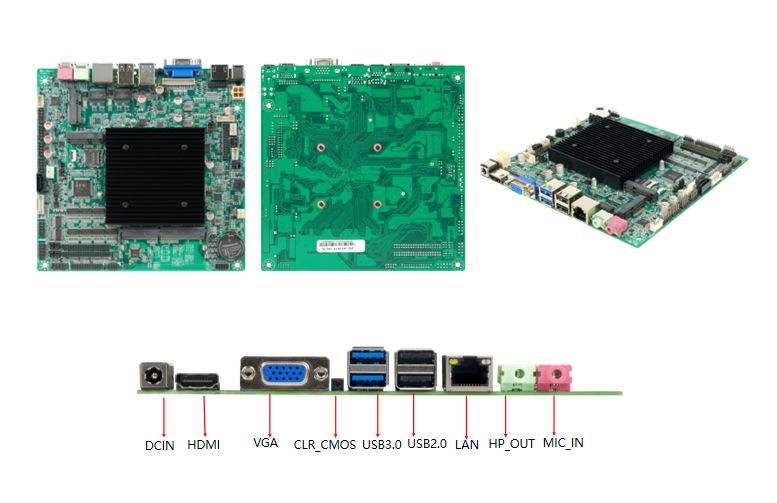

| CPU | Intel® Celeron® J4125/J4105/N4000 Processor | Rear I/O | 1*DC（φ5.5&2.5mm DC Jack） |
| Chipset | SOC | 1*HDMI | |
| GPU | Intel UHD Graphics 600 | 1*VGA | |
| Display | LVDS+HDMI+VGA ; EDP1+HDMI+VGA | 2*USB3.0 | |
| Muilt dispaly | VGA+HDMI/EDP2+LVDS/EDP1 | 2*USB2.0 （LAN2 or 2*USB2.0 | |
| Triple Display(synchrony/asynchrony) | 1*LAN | ||
| USB | 2*USB3.2 GEN1(5Gbps)+6*USB2.0 | 1*HP_OUT | |
| Memory | 1*SO-DIMM DDR4 2400MHz Max8GB | 1*MIC_IN | |
| Audio | Onboard Realtek ALC897 | Internal I/O | 1*VGA_H pin |
| NS4251 | 1*F-AUDIO pin | ||
| Network | Onboard 2*RTL8111H/RTL8111GGigabit Ethernet | 1*SPEAKER pin | |
| Storage | 1*SATA3.0 1*mSATA | 3*F_USB2.0 pin（can be extended to 6*USB2.0） | |
| Slot | 1*Mini_Pcie（for WIFI+bluetooth/4G） | 1*SATA pin | |
| I/O chip | ITE8786E-I | 1*SATA_PWR pin | |
| BIOS | AMI BIOS | 1*JPS2 pin | |
| Power | DC/ATX 4PIN 12V power supply | 1*J_PRINT pin | |
| 1*F_PANEL pin | |||
| Cooling | FANLESS | 10*COM pin（PIN（ Support 1*RS485，COM1 and COM2 support ） | |
| RI/5V/12V） | |||
| Environment | operation：0~60℃; storage：-20℃~75℃ 0% ~ 95% Relative Humidity,Non-condensing |
1*GPIO pin | |
| 1*LVDS pin/1*EDP1 pin | |||
| 1*INVERT pin | |||
| Size | 170X170mm | 1*LCTL pin | |
| 1*4PIN ATX pin | |||
