M211M(OPS)
Detailed
Domestic ZHAOXIN supports KX-6000 8-core 2.7GHz main frequency processor
IO supports 2xHDMI Port+1xDP Port
Supports dual channel SO-DIMM DDR4 2666MT/s Max32GB
Built in independent graphics card expansion, optional with GTX1030/1050/750 and other graphics cards
Support Key M M.2 interface, expandable SSD module
Support Key A M.2 interface, expandable WiFi+Bluetooth
Supports 6 x USB interfaces for flexible expansion of various peripheral devices
USB interface supports short circuit protection, power short circuit system does not crash or restart

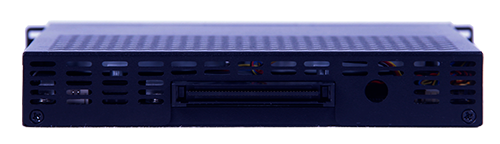

Unique design, supporting OPS interface for live and undamaged plugging and unplugging
The product meets the standard OPS-C design specifications

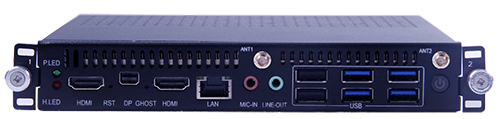

0755-83650405 | CPU | Support for Domestic ZHAOXIN KX-6000 8-core 2.7GHz main frequency 70W 16nm processor | I/O terminal display | USB 4 x USB3.0+2 x USB2.0 Display 2 x HDMI + 1 x Mini DP Network port 1 x RJ45n 1 x Power Button 1 x R-SET 1 x Ghost key (reserved) |
| Main board model: OPS-KX6780A-CM1 | |||
| Chipset | ZHAOXIN KX-6000 series | ||
| BIOS | Domestic ByoCore firmware supports write protection, diskless startup, wake-on-LAN, power on startup, watchdog and other functions | ||
| Memory capacity | 2xSO-DIMM，DDR4 2400/2666MHz Max32GB | ||
| Storage interface | 1xSATA interface (for 2.5"SSD)SATA3.0 | ||
| 1x7+15pin SATA interface (for 2.5"SSD)SATA | |||
| 1xM.2 M Key(SATA SSD) | |||
| Graphic display | NVIDIA independent graphics card GTX1050/1030/750/730, etc | ||
| 2xHDMI; 1xMiniDP, supports synchronous/asynchronous display) | |||
| HDMI: display resolution is determined by the selected combination | |||
| MiniDP: display resolution is determined by the selected combination | |||
| OPS HDMI: display resolution is determined by the selected combination | |||
| OPS display | OPS interface 1 x OPS standard interface (80pin) | ||
| DC Jack | 1 x φ 7.5/5.5mm HP head | ||
| Audio frequency | 1 x LINE-OUT &1 x MIC-IN | ||
| Power Input | OPS sub card power supply 12~19V wide voltage input | ||
| Watchdog | Shutdown restart system interval 255 level timed interval | ||
| Operating system | Linux: Zhongke Fangde, Zhongzhong Qilin, Puhua, Ubuntu, Fedora, CentOS, Tongxin UOS | ||
| Windows: Windows XP/7/10, Win10 Government Edition | |||
| Environment | Working temperature: 0 ° C~60 ° C Storage temperature: -20~70 ° C | ||
| 5%~90% non condensing | |||
| Size | 180x195x30mm |
