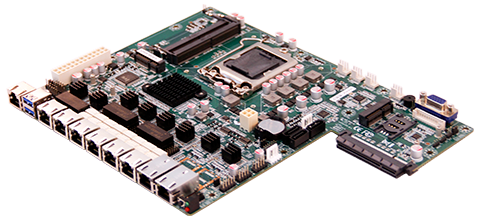

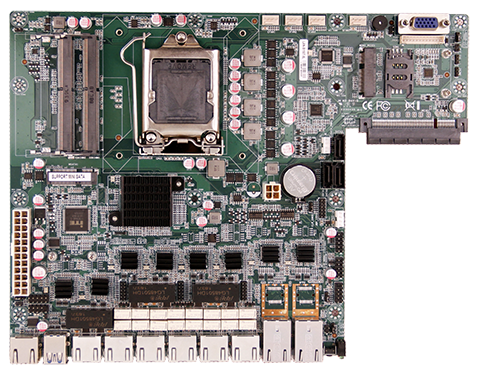

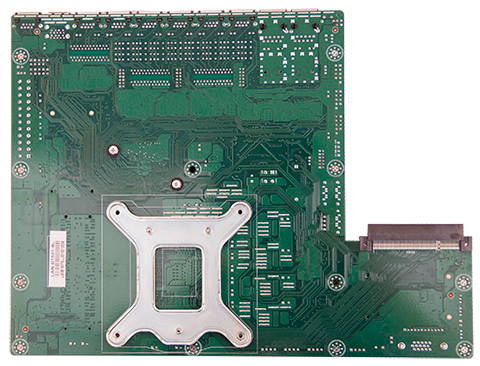

LAN-B150T-8L
Detailed
Support Intel® LGA 1151 6th&7th Processor
Dual Channel SO-DIMM DDR4 2133/2400MHz Max32GB
Built in 1*VGA pin，Support VGA Display
Support 8*I211，Support Bypass
Support 2*USB3.0 4*USB2.0
Support 1*COM pin +1*RJ45_COM
Support 1*Mini-PCIe (For WIFI Card) 、1*SIM
Support 3*SATA3.0 、1*mSATA
Support 1*PCIEX8 Expansion Slot
ATX Power Supply
0755-83650405 | Specification parameters | |||

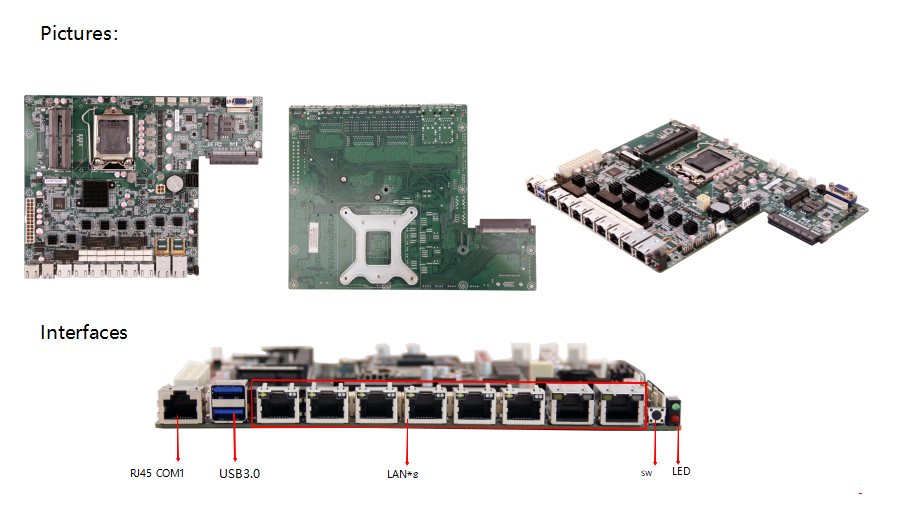

| CPU | Intel®LGA1151( Skylake&Kabylake) | Rear I/O | 8*LAN |
| Chipset | Intel® 100 Series Chipsets B150 | 2*USB3.0 | |
| GPU | Intel® HD Graphics | 1*RJ45_COM | |
| Display | Built in 1*VGA pin | 1*POWER＆HDD LED | |
| COM | 1*COM 1*RJ45_COM | 1*SW | |
| USB | 2*USB3.0 ， 4*USB2.0 | Internal I/O | 1*4PIN ATX PIN |
| RAM | 2*SO-DIMM DDR4 2133/2400MHz 32GB | 1*24PIN ATX PIN | |
| Expansion | 1*PCIEX8 | 1*COM PIN | |
| Network | 8*I211Gigabit LAN | 1*GPIO PIN | |
| storage | 3*SATA3.0 , 1*MINI-SATA | 3*LAN_LED PIN | |
| WIFI | 1*Mini PCIe (For WIFI/4G) , 1*SIM | 1*F_PANEL PIN | |
| I/O Chip | ITE8784E-I | 2*F_USBPIN(Support 4*USB2.0) | |
| BIOS | AMI BIOS | 1*JBP_LED PIN | |
| Power | ATXPower | 3*SATA PIN | |
| Cooling | Fanless | 2*SATA_PWR PIN | |
| Operating Environment | Operating：0~60℃; Storage: -20~75℃; 0%~95% Relative Humidity,Non-condensing |
1*VGA插針 | |
| 1*CPU FAN插針 | |||
| Size | 280X210mm | 3*SYS FAN插針 | |
