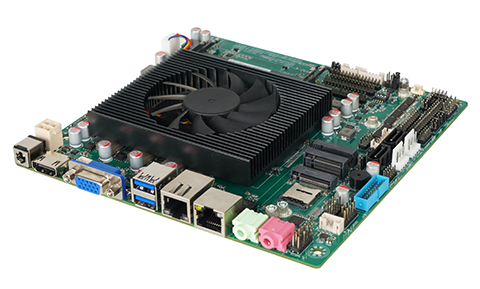

ZO-HM370TA-6C2L
Detailed
Support for Intel ® 8th/9th/10th generation 8300H 9300H 10500H and other H-series processors
Dual channel SO-DIMM, DDR4 2666MHz, Max64GB
Supports LVDS/EDP1+EDP2+HDMI+VGA, any three display synchronous
On board 2 * Realtek RTL8111H/8111G Gigabit Ethernet card
Supports 4 * USB2.0+4 * USB3.2 Gen1 (5Gbps)
Supports 6 * COM (COM2 supports RS422/RS485)
Supports 2 * SATA, 1 * M.2 M Key (supports PCIe X4/SATA signal adaptation)
Supports 1 * M.2 A Key (supports WiFi+Bluetooth module); 1 * M.2 B Key (supporting 3G/4G modules); 1 * SIM slot
DC 12V~19V power supply, supporting power on self start, hardware monitoring

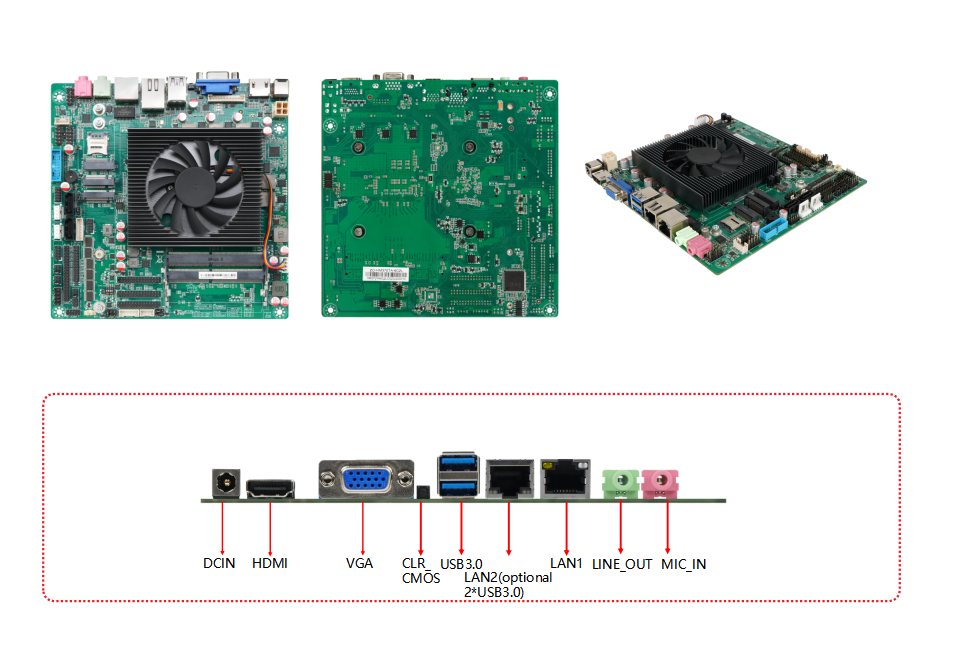

0755-83650405 | CPU | Intel ® 8th/9th/10th generation H-series processors | Post I/O interface | 1 * DC interface 1 * HDMI interface 1 * VGA interface 1 * CLR_ CMOS buttons 2 * USB3.2 Gen 1 interface (5Gbps) 1 * LAN2 interface (optional 2 * USB3.0) 1 * LAN1 interface 1 * MIC-IN interface 1 * LINE OUT interface |
| Chipset | Intel® SOC HM370/Z390 | ||
| Display chip | Intel ® Ultra Core Graphics Card 630 | ||
| Display output | LVDS/EDP1+EDP2+HDaMI+VGA， | ||
| Multi display support | Supports three display synchronous and asynchronous | ||
| USB | 4*USB2.0+4*USB3.2 Gen1(5Gbps) | ||
| Memory | 2*SO-DIMM DDR4 2666MHz Max64GB | ||
| sound effects | On board ALC269 audio decoding controller; | ||
| Independent power amplifier NS4251 2.2W@4 Ω MAX | |||
| Network card | On board 2 * Realtek RLT8111H/8111G network card | Internal I/O | 1 * F_ AUDIO pin 1 * SPEAKER pin 2 * F_ USB pin (expandable 4 * USB2.0) 1 * F_ USB1 pin (expandable 2 * USB3.2 Gen1) 1 * GPIO pin 2 * SATA socket 2 * JSATA_ PWR pin 1 * PS/2 pin 1 * DEBUG pin 6 * COM pin (supports one RS485) 1 * F_ PANEL pin 1 * J_ PRINT pin 1 * INCN pin 1 * LCTL pin 1 * LVDS pin 2 * EDP pin 1 * CPU_ FAN pin 1 * 4Pin ATX power socket 1 * JVGA pin |
| storage | 2*SATA | ||
| 1*M.2 M Key（NVME PCIeX4/SATA SSD self-adaption ） | |||
| expansion slot | Supports 1 * M.2 A Key (supports WiFi+Bluetooth module); 1 * M.2 B Key (supporting 3G/4G modules); 1 * SIM slot | ||
| I/O chip | IT8786E-I | ||
| BIOS | AMI BIOS | ||
| power supply | DC/4PINATX 12~19V power supply | ||
| Cooling System | Equipped with CPU fan and heat sink | ||
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ | ||
| 0%~95% relative humidity, non condensing | |||
| Size | 170X170mm |
