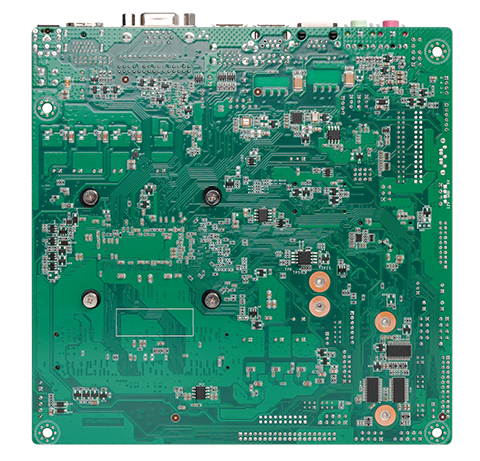

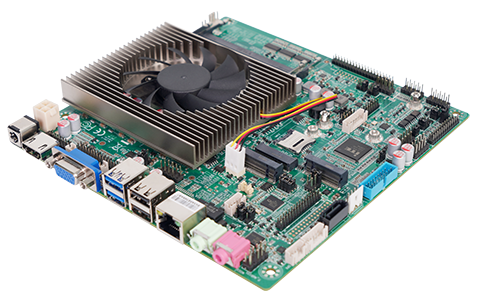

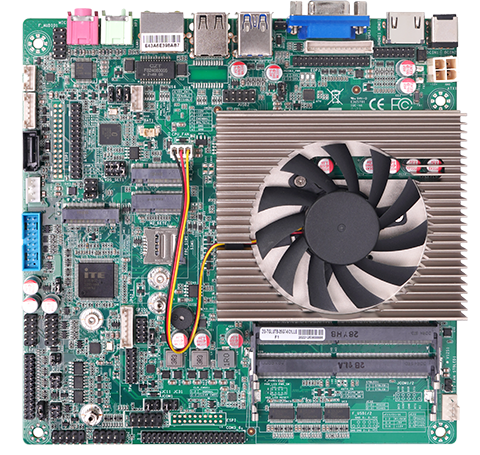

ZO-TGLUTB-6C2L
Detailed
Support for Intel ® Tiger Lake UP3 Processor (1135G7/1145G7, etc.)
Supports dual channel SO-DIMM, DDR4 3200MHz, Max32GB
Supports LVDS1/EDP1+EDP2+HDMI+VGA output, four display synchronous
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional dual network)
Supports 2 * USB3.2 Gen2 (10Gbps), 2 * USB3.2 Gen1 (5Gbps), and 8 * USB2.0; 6 * COM (COM1/2/3 supports Pin1/9 electrification options, with resistance selection, default to Pin9 electrification)
1 * M.2 M Key, supporting optional PCIEX2/SATA signals; 1 * SATA III (6.0 Gb/s)
1 * M.2 E Key, supporting Wifi6/Bluetooth module expansion; 1 * M.2 B Key, supporting 4G/5G module expansion; 1 * SIM card slot
DC 12V power supply
0755-83650405 | Specification parameters | |||

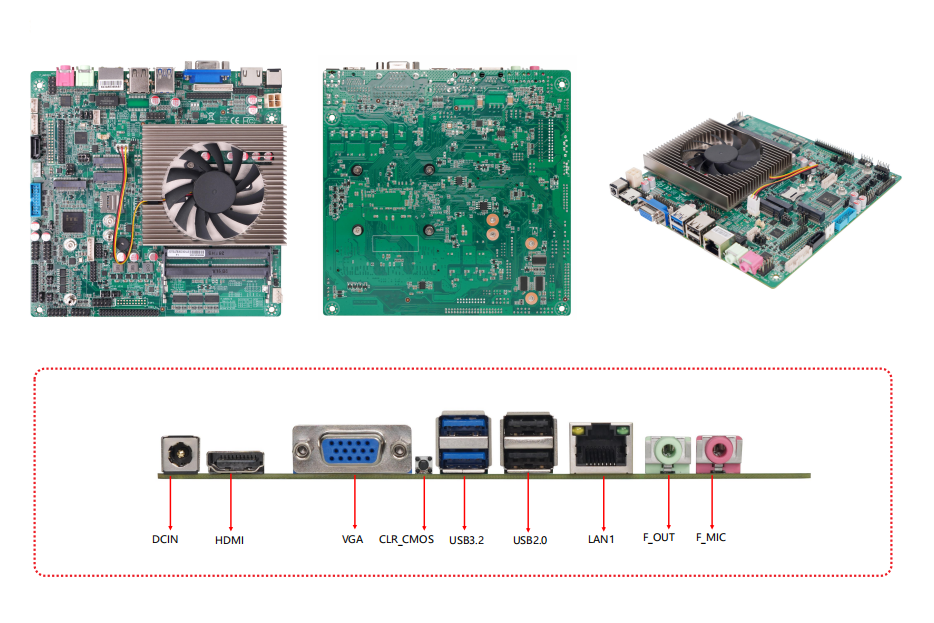

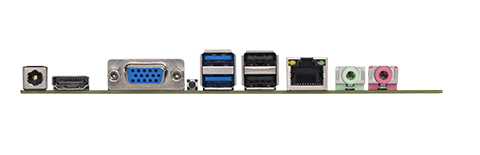

| CPU | Intel®Tiger Lake-UP3 Processor 1135G7/1145G7 etc | Post I/O interface | 1*DC_IN Port |
| Chipset | Intel® SOC | 1*HDMI port | |
| Display chip | Intel® Sharp torch ® X ? graphics card | 1*VGA port | |
| Display output | LVDS1/EDP1+EDP2+HDMI+VGA |
1 * CLR_ CMOS buttons |
|
| Multi display support | Four display synchronous asynchronous | 2*USB3.2 Gen2(10Gbps) port | |
| USB | 2*USB3.2 Gen2（10Gbps） ，2*USB3.2 Gen1 （5Gbps），8*USB2.0 |
1 * LAN2 port (optional with 2 * USB2.0) |
|
| 1*LAN1 port | |||
| 1*F_OUTport | |||
| Memory | 2*SO-DIMM DDR4 3200MHz Max32GB | 1*F_MIC port | |
| Sound effects | On board ALC897 audio decoding controller; Independent power amplifier NS4251 3W@4 Ω MAX |
Internal I/O pin | 1*F_AUDIO contact pin |
| 1*Speaker contact pin | |||
| 1*INVERT contact pin | |||
| Network card | On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional dual network)） | 2*EDP contact pin | |
| 1*LVDS contact pin | |||
| Storage | 1 * M.2 M Key, supporting PCIEX2/SATA signals Select; 1 * SATA III (6.0 Gb/s) |
1*BKCL contact pin | |
| 1*SATA contact pin | |||
| 1*SATA_PWR contact pin | |||
| Expansion slot | 1 * M.2 E Key, supporting Wifi6/Bluetooth module expansion; 1 * M.2 B Key, supporting 4G/5G module expansion; 1 * SIM card slot |
1*F_USB1（extensible 2*USB3.2 Gen1） | |
| 3*F_USB2.0（extensible 6*USB2.0） | |||
| 1*LPT contact pin | |||
| IO chip |
IT8786E-I | 1*JPS2 contact pin | |
| BIOS | AMI BIOS | 1*GPIO contact pin | |
| Power supply | DC/4PIN ATX 12V power supply | 1*TPM contact pin | |
| Heat dissipation system | Equipped with fan and radiator | 1*F_PANELcontact pin | |
| 6*COMcontact pin | |||
| Environment |
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃0%~95% relative humidity, non condensing |
1*CFAN contact pin | |
| 1*SFAN contact pin | |||
| 1*JHDMI contact pin | |||
| Main board size | 170X170mm | 1*JVGA contact pin | |
| 1*ATX_IN socket | |||
