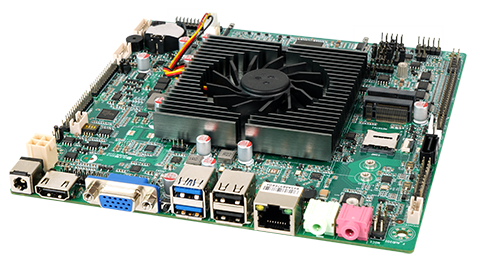

ZO-JSLT-6C2L
Detailed
Support Intel® Jasper lake Series Processor
Single channel SO-DIMM DDR4 2933MHz Max16GB
Supports LVDS/EDP1+EDP2/HDMI+VGA, three display synchronous
On board 1 * Realtek 8111G/8111H Gigabit Ethernet card (optional dual network)
Supports 2 * USB3.0 (3.2Gen2 10Gbps)+8 * USB2.0
Supports 6 * COM232, with COM2 supporting RS485 (COM3 485 optional)
1 * M.2 Key B supports SATA SSD and 4G/5G expansion (SATA hard disk and 4G/5G module can only choose between two), 1 * SATA3.0
1 * M.2 Key E, supporting WiFi 6+Bluetooth;
DC 12V power supply

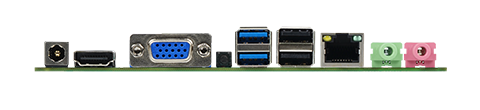

0755-83650405 | CPU | Intel® Jasper lake Series Processor | Post I/O interface | 1 * DC interface (p5.5-2.5mm DC JACK) 1 * HDMI interface 1 * VGA interface 1 * CLR_ CMOS buttons 2 * USB3.0 interface 2 * USB2.0 interface (optional with 1 * LAN interface) 1 * LAN1 interface 1 * LINE OUT interface 1 * MIC-IN interface |
| Chipset | Intel® SOC | ||
| Display chip | Intel® UHD Graphics | ||
| Display output | LVDS+HDMI+VGA ; LVDS+EDP2+VGA | ||
| EDP1+HDMI+VGA ; EDP1+EDP2+VGA | |||
| Multi display support | Supports three display simultaneous/asynchronous display | ||
| USB | 2*USB3.0+8*USB2.0 | ||
| Memory | 1*SO-DIMM DDR4 2933MHz Max16GB | ||
| sound effects | On board HS-100B USB audio decoding controller; | ||
| Built in independent power amplifier NS4251 (3W/4 Ω) | Internal I/O | 1 * F_ AUDIO pin 1 * SPEAKER pin 3 * F_ USB pin (expandable 6 * USB2.0) 1 * SATA socket 1 * JSATA_ PWR pin 1 * GPIO pin 2 * COM232 pin (COM2 supports RS485 optional, COM1/2 supports live optional DCD/5V/12V) 1 * COM_ CON pin (expandable 4 * COM, COM3 supports RS485 option) 1 * F_ PANEL pin 1 * JSIM (supports external FPC SIM signal extension cable) 1 * J_ PRINT pin 1 * JPS2 pin 1 * INCN pin 1 * LVDS/EDP1 pin (function two options -) 1 * BKCL pin 1 * EDP2 pin (default to upper part, but only some models have functions, see model configuration table for details) 1 * JVGA pin 1 * 4Pin ATX power socket |
|
| Network card | 1*SATA3.0 | ||
| storage | 1*M.2 B Key（SATA SSD 2280mm） | ||
| expansion slot | 1 * M.2 E Key (supports WiFi+Bluetooth) | ||
| 1 * SIM (supports 4G/5G, supported through B KEY) | |||
| I/O chip | ITE8786E-I | ||
| BIOS | AMI BIOS | ||
| power supply | DC/4PIN DC12V power supply | ||
| Cooling System | Equipped with CPU heat sink | ||
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ | ||
| 0%~95% relative humidity, non condensing | |||
| Size | 170X170mm |
