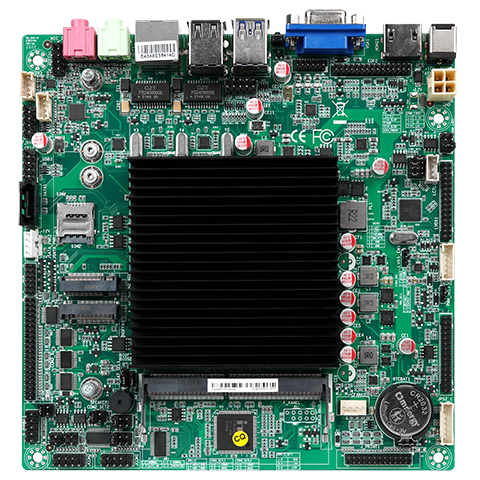

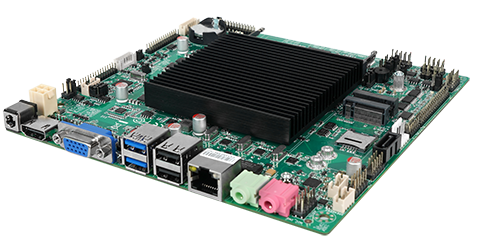

ZO-EHLT-6C2L
Detailed
Support Intel® customizations Elkhart LakeJ6412/J6413
1*SO-DIMM DDR4 2933/2666MHz Max16GB
Support VGA、HDMI/EDP2、LVDS/EDP1, Support Triple Display
Support HDMI2.0 4K 60Hz Output
Onboard 1*RTL8106 1000M（Options: 1000M、2*LAN）
Support 2*USB3.2+8*USB2.0
Support 6*COM232，(Option: COM2 can Support 485)
Support 1*M.2 KeyB 1*SATA 1*M.2 KeyE
Onboard 1*MiniPCIe，Support Wifi6+Bluetooth /4G Module
DC12V Power Supply

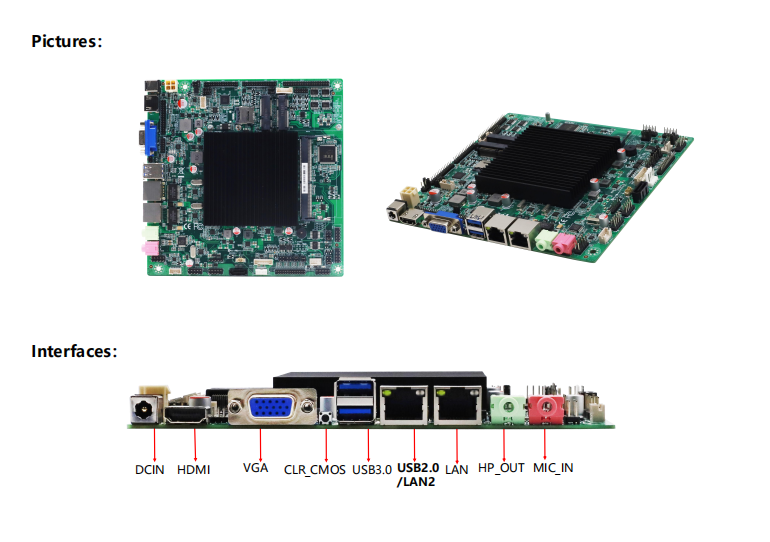

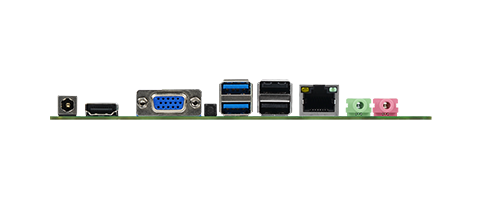

0755-83650405 | CPU | The first Intel® customizations Elkhart Lake | Rear I/O | 1*DC（φ5.5&2.5mm DC Jack） 1*HDMI 1*VGA 2*USB3.0 1*CMOS 2*USB2.0 （LAN2 or 2*USB2.0 ） 1*HP_OUT 1*MIC_IN |
| Chipset | Elkhart Lake | ||
| GPU | Intel UHD Graphics | ||
| Display | VGA、HDMI/EDP2、LVDS/EDP1 | ||
| Muilt Display | VGA+HDMI/EDP2+LVDS/EDP1 | ||
| Triple Display(synchrony/asynchrony) | |||
| USB | 2*USB3.0+8*USB2.0 | ||
| Memory | 1*SO-DIMM DDR4 2933MHz Max16GB | Internal I/O | 1*EDP2 PIN（This pin has no function by default, if you want to use it, we need to update the BIOS firmware） 1*VGA_H PIN 1*F-AUDIO PIN 1*SPEAKER PIN 3*F_USB2.0 PIN（can be extended to 7*USB2.0） 1*SATA PIN 1*SATA_PWR PIN 1*JPS2 PIN 1*J_PRINT PIN 1*F_PANEL PIN 2*COM232 PIN（ Support 1*RS485，COM1 and COM2 support DCD/5V/12V） 1*COM_CON PIN（4*COM232） 1*GPIO PIN 1*LVDS PIN/1*EDP1 PIN 1*INVERT PIN 1*SIM Slot 1*ATX PIN |
| Audio | Onboard audio decoder controller | ||
| Built-in Amplifier out3W@4Ω 1.7W@8Ω max | |||
| Network | Onboard 1*Realtek RTL8106 1000M | ||
| (Options: 2*LAN、Gigabit LAN） | |||
| Storage | 1*M.2 KeyB ; 1*M.2 KeyE | ||
| Slot | 1*Mini_PCIe( Support WIFI&Bluetooth/4G) | ||
| I/O Chip | ITE8786E-I/ITE8784E-I | ||
| BIOS | AMI BIOS | ||
| Power | DC/4PIN DC12V Power Supply | ||
| Cooling | FANLESS | ||
| Operating | Operating:0~60℃; Storage: -20~75℃ 0%~95% | ||
| Environment | Relative Humidity,Non-condensing | ||
| Size | 170X170MM |
| Model | DIMM | Expansion interface | storage | display interface | radiating | power supply | |||||||||||
| USB2.0 | USB3.0 | COM232 | COM485 | LAN | LPT | SPEAKE | M.2 A Key | SATA | M.2 B Key | VGA | LVDS | EDP | HDMI | DC | |||
| ZO-J6412T-6C1L | 1 | 8 | 2 | 6 | 2 | 1*Gigabit | √ | √ | √ | 1 | √ | 1 | 1 | 0 | 1 | Profile | 12V |
| ZO-J6412T-6C2L | 1 | 6 | 2 | 6 | 2 | 2*Gigabit | √ | √ | √ | 1 | √ | 1 | 1 | 0 | 1 | Profile | 12V |
| ZO-J6412T-6C1L1E | 1 | 8 | 2 | 6 | 2 | 1*Gigabit | √ | √ | √ | 1 | √ | 1 | 0 | 1 | 1 | Profile | 12V |
| ZO-J6412T-6C2L1E | 1 | 6 | 2 | 6 | 2 | 2*Gigabit | √ | √ | √ | 1 | √ | 1 | 0 | 1 | 1 | Profile | 12V |
| ZO-J6412T-6C1LLE | 1 | 8 | 2 | 6 | 2 | 1*Gigabit | √ | √ | √ | 1 | √ | 1 | 1 | 1 | 0 | Profile | 12V |
| ZO-J6412T-6C2LLE | 1 | 6 | 2 | 6 | 2 | 2*Gigabit | √ | √ | √ | 1 | √ | 1 | 1 | 1 | 0 | Profile | 12V |
| ZO-J6412T-6C1L2E | 1 | 8 | 2 | 6 | 2 | 1*Gigabit | √ | √ | √ | 1 | √ | 1 | 0 | 2 | 0 | Profile | 12V |
| ZO-J6412T-6C2L2E | 1 | 6 | 2 | 6 | 2 | 2*Gigabit | √ | √ | √ | 1 | √ | 1 | 0 | 2 | 0 | Profile | 12V |
| Note: 1. Choose between EDP1 and LVDS, and choose between EDP2 and HDMI 2. Except for the dual EDP model, the default EDP2/HDMI function for other models is HDMI. EDP2: This pin has no function by default. If needed, the bios firmware needs to be updated and the motherboard hardware needs to be changed. 3. Even if the HDMI interface is not functional for all models, the interface materials will still be loaded by default. If there is a need to delete the HDMI interface, please provide it separately |
|||||||||||||||||
